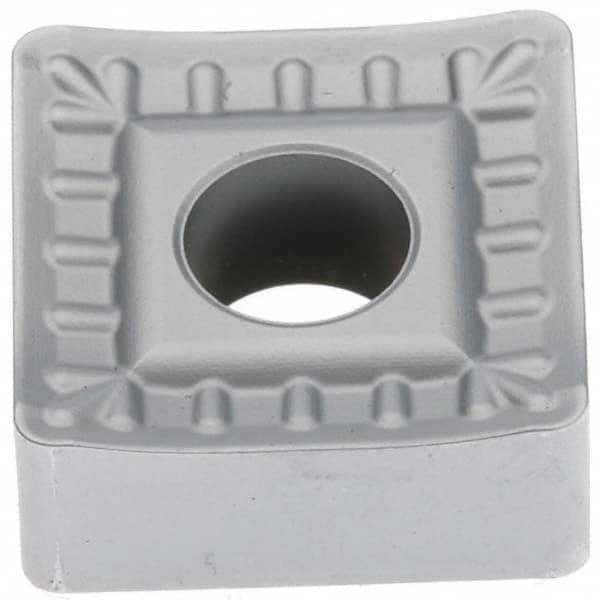

Seco - SNMM644 R4 Grade TP25 Carbide Turning Insert
Item #: 96215538
Brand: Seco
Model #: 03310801
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 644 |
| Material | Carbide |
| Length (Inch) | 3/4 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | R4 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Lead Angle | 75.000 |
| Rake | Negative |
| Rake Angle | 19 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMM644-R4 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SNMM |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| Shape | Square |
