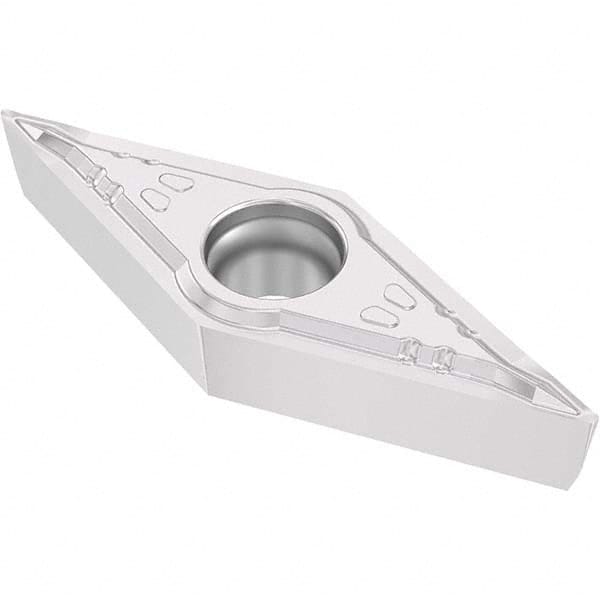

Seco - VBMT222 F1 Grade TM3501 Carbide Turning Insert
Item #: 18615542
Brand: Seco
Model #: 03276615
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 222 |
| Material | Carbide |
| Length (Inch) | 23/64 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | TM3501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | F1 |
| Overall Length (Decimal Inch) | 0.4358 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| ISO Number | VBMT110308 |
| Lead Angle | 93.000 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 5 |
| Coating Process | CVD |
| Manufacturers Catalog Number | VBMT222-F1 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
