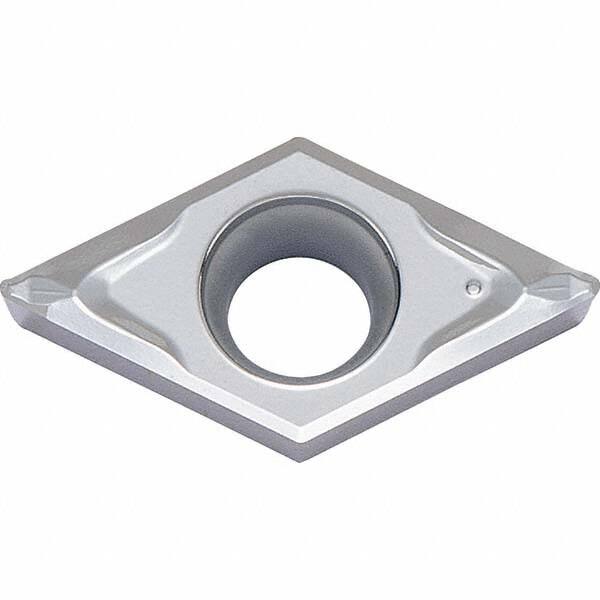

Kyocera - DCGT21505 AP Grade KW10 Carbide Turning Insert
Item #: 11382363
Brand: Kyocera
Model #: 8862024
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21505 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Chip Breaker | AP |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCGT070202AP |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | DCGT21505AP KW10 |
| Primary Workpiece Material | N |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | DCGT |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Copying, Back Boring, Sub-Spindle |
| MultiUseTool | Yes |
| Shape | Diamond |
