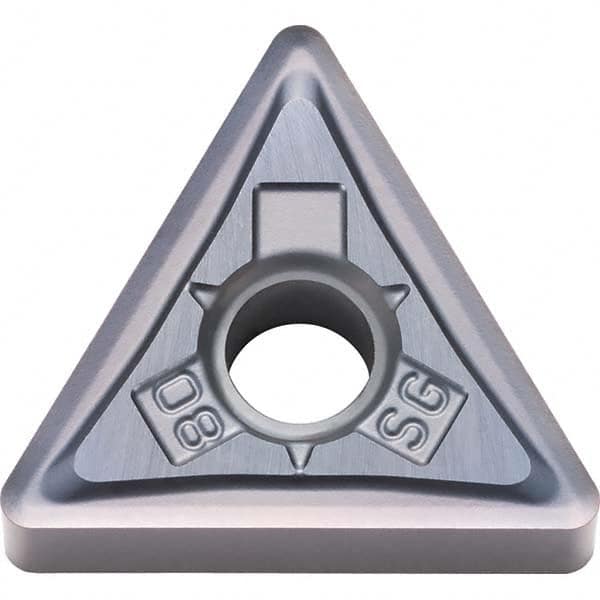

Kyocera - TNMG433 SG Grade PR015S Carbide Turning Insert
Item #: 97767040
Brand: Kyocera
Model #: 8861403
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | PR015S |
| Coating | Megacoat Hard |
| Chip Breaker | SG |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | TNMG220412SG |
| Rake | Negative |
| Coating Process | PVD |
| Manufacturers Catalog Number | TNMG433SG PR015S |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | TNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Copying, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
