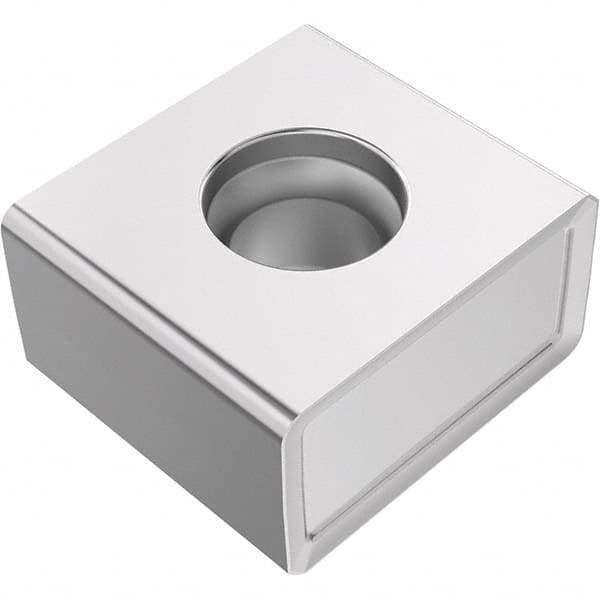

Seco - LNHQ140708 M11 Grade MP2501 Carbide Milling Insert
Item #: 96591565
Brand: Seco
Model #: 03273289
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNHQ |
| Insert Size | 140708 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | MP2501 |
| Coating | TiCN/Al2O3 |
| Length (mm) | 14.00 |
| Inscribed Circle (mm) | 14.00 |
| Thickness (mm) | 7.50 |
| Corner Radius (Inch) | 1/32 |
| Relief Angle | 0.000 |
| Rake Angle | 16 |
| Rake | Negative |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Parallelogram |
| Insert Hand | Neutral |
| Chipbreaker | M11 |
