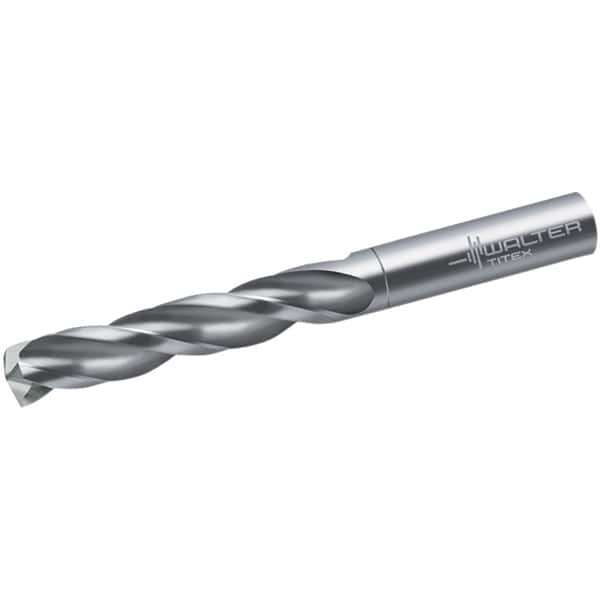

Walter-Titex - 12mm 150° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 36295020
Brand: Walter-Titex
Model #: 5057806
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Drill Bit Size (mm) | 12.00 |
| Drill Point Angle | 150 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 65.00 |
| Flute Length (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0158 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Maximiza |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 51.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.0079 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 37.00 |
| Shank Length (Decimal Inch) | 1.4567 |
| Threaded Shank | No |
| Number of Flutes | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h7 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 6539 |
| Web Thinning | Web-Thinned |
| Material Grade | K30F |
| Series/List | A1166 |
| Length Type | Regular |
