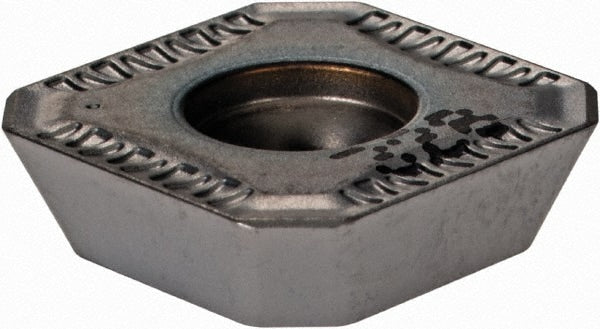

Milling Insert: SEMT 12T3AFTN-76 IC328, Solid Carbide
Item #: 52732914
Brand: Iscar
Model #: 5667623
Product Specifications
| Insert Style | SEMT |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC328 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1460 |
| Coating/Finish | TiCN |
| Relief Angle | 20.00 |
| Insert Size Code | 12T3 |
| Material Grade | C3; C5; C6; C2 |
| Inscribed Circle (Decimal Inch) | 0.5180 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Maximum Depth of Cut (mm) | 6.50 |
| Series | ISCARMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5177 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | ?SEMT 12T3AFTN-76 IC328 |
| Iso Code | SEMT 12T3AFTN-76 |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ?SEMT 12T3AFTN-76 IC328 |
| Cutter Series Compatibility | F45ST |
| Chip Breaker | 76 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5177 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5177 |
