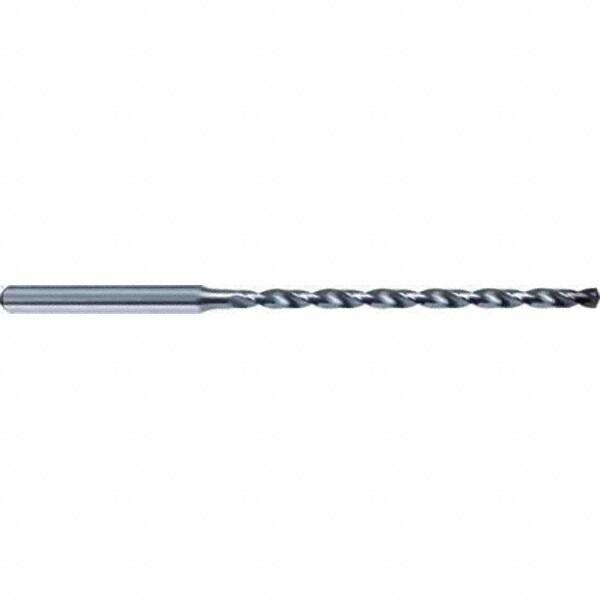

Guhring - 1.75mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 98696206
Brand: Guhring
Model #: 9064120017500
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 1.75 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 32.00 |
| Overall Length (mm) | 70.00 |
| Flute Length x Diameter Ratio | 15xD |
| Point Type | Four Facet |
| Shank Diameter (mm) | 4.00 |
| Specification Designation | Not Specified |
| Maximum Drilling Depth (mm) | 29.30 |
| Shank Length (mm) | 38.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 32.00 |
| Drill Bit Diameter Tolerance (mm) | h7 |
| Through Coolant | Yes |
| Drill Bit Grade | High Performance |
| Series/List | 6412 |
