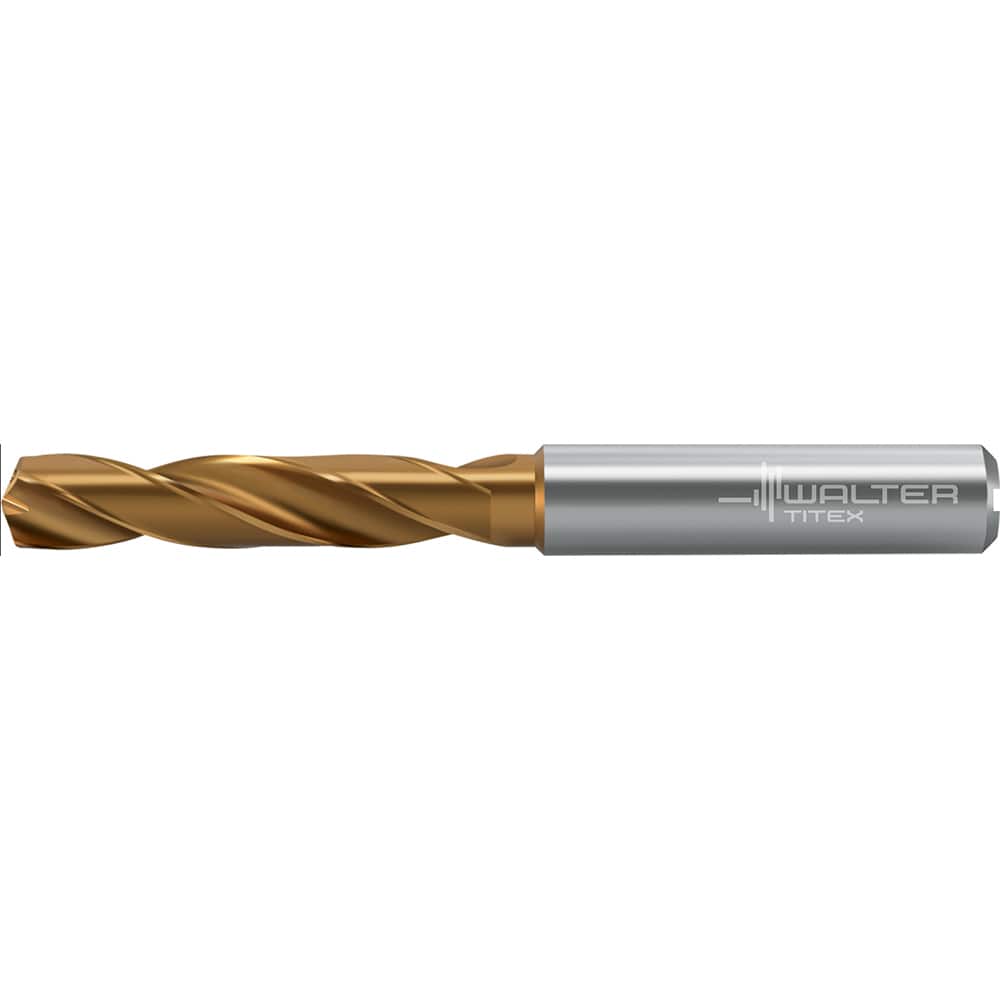

Walter-Titex - Screw Machine Drill Bit
Item #: 10359438
Brand: Walter-Titex
Model #: 7378116
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiSiAlCrN/AlTiN is a multi-layer coating that is extremely wear-resistant. TiSiAlCrN/AlTiN is a proprietary coating exclusive to Walter Titex.
Product Specifications
Screw Machine Drill Bit -
| Drill Bit Size (Decimal Inch) | 0.2008 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (Decimal Inch) | 1.1020 |
| Overall Length (Decimal Inch) | 2.59800 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Maximum Drilling Depth (Decimal Inch) | 0.7870 |
| Shank Length (Decimal Inch) | 1.4170 |
| Number of Flutes | 2 |
| Drill Point Length (Decimal Inch) | 0.0370 |
| Through Coolant | Yes |
| Material Grade | WJ30ET |
| Series/List | DC160-03-A1 |
