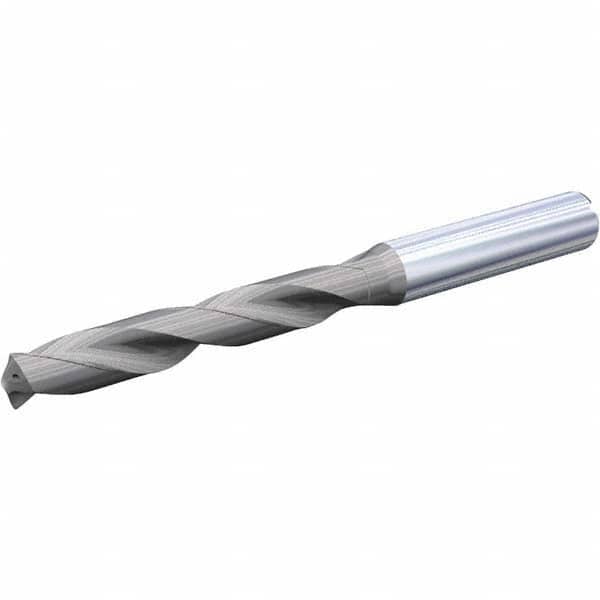

Kennametal - #3 140° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 12254587
Brand: Kennametal
Model #: 6782350
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 5.41 |
| Drill Bit Size (Wire) | #3 |
| Drill Bit Size (Decimal Inch) | 0.2130 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN/AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Flute Length (mm) | 56.00 |
| Overall Length (mm) | 94.00 |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 48.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 1.19 |
| Material Grade | KCP15B |
| Series/List | HPX |
