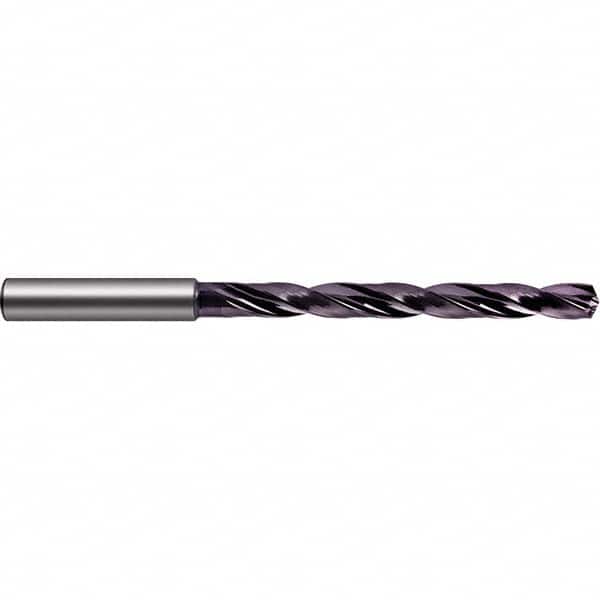

Guhring - 5.2mm 140° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 12192902
Brand: Guhring
Model #: 9054990052000
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
nano-FIREX is a micro-layered coating that combines the characteristics and universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. The nano-FIREX structure increases overall thickness and shock resistance when compared to FIREX . FIREX is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 5.20 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | nano-FIREX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Oversized |
| Through Coolant | Yes |
| Point Type | Cone Relief |
| Flute Length (mm) | 50.00 |
| Overall Length (mm) | 90.00 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 7xD |
| Maximum Drilling Depth (mm) | 42.20 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Series/List | 5499 |
| Drill Bit Grade | High Performance |
