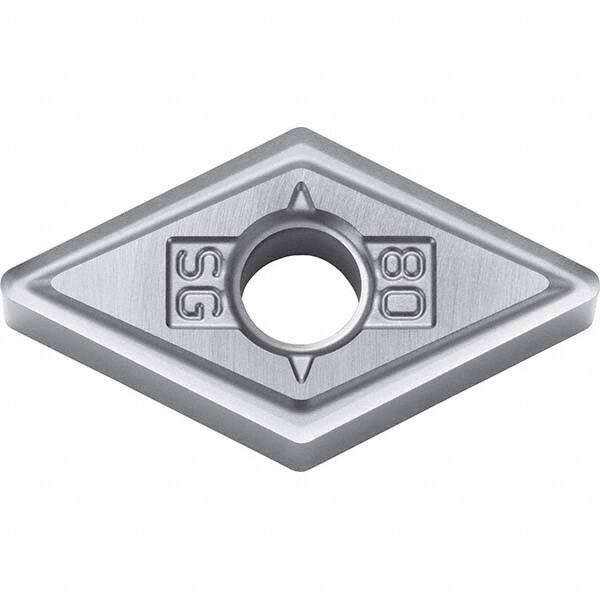

Kyocera - DNMG442 SG Grade SW05 Carbide Turning Insert
Item #: 11382421
Brand: Kyocera
Model #: 8861983
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 442 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | SW05 |
| Coating | WC/Co |
| Chip Breaker | SG |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | DNMG150608SG |
| Rake | Negative |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | DNMG442SG SW05 |
| Primary Workpiece Material | S |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | DNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Copying, Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
