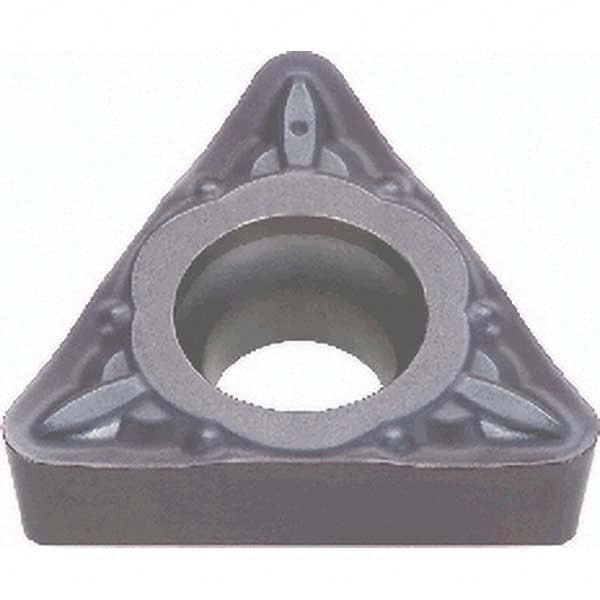

Tungaloy - TCMT090204 PSS Grade T9215 Carbide Turning Insert
Item #: 12171302
Brand: Tungaloy
Model #: 6773986
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 090204 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3780 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Thickness (Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | T9215 |
| Coating | TiN/TiCN/Al2O3/TiN |
| Material Grade | P10/P20 |
| Chip Breaker | PSS |
| Insert Length (Decimal Inch) | 0.3780 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TCMT090204-PSS |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Shape | Triangle |
