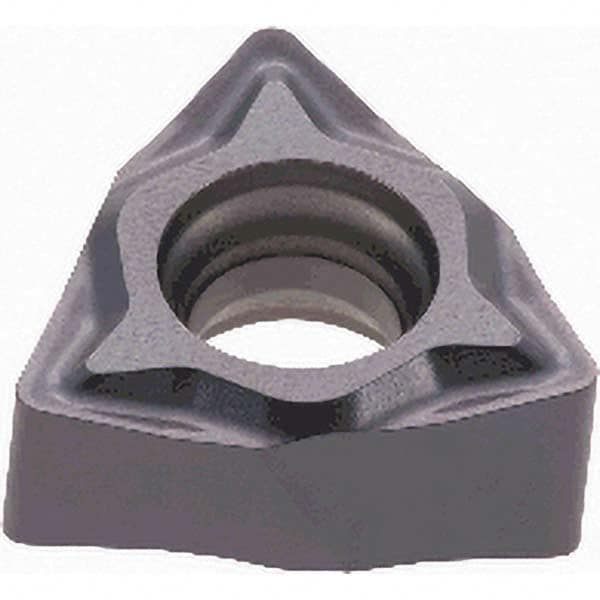

Tungaloy - WXGU040304 TSW Grade AH8015 Carbide Turning Insert
Item #: 12178109
Brand: Tungaloy
Model #: 6782992
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WXGU |
| Insert Size | 040304 |
| Material | Carbide |
| Length (Decimal Inch) | 0.1690 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AH8015 |
| Coating | AlTiN |
| Material Grade | M10/S10/H10 |
| Chip Breaker | TSW |
| Insert Length (Decimal Inch) | 0.1690 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WXGU040304L-TSW |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Shape | Trigon |
