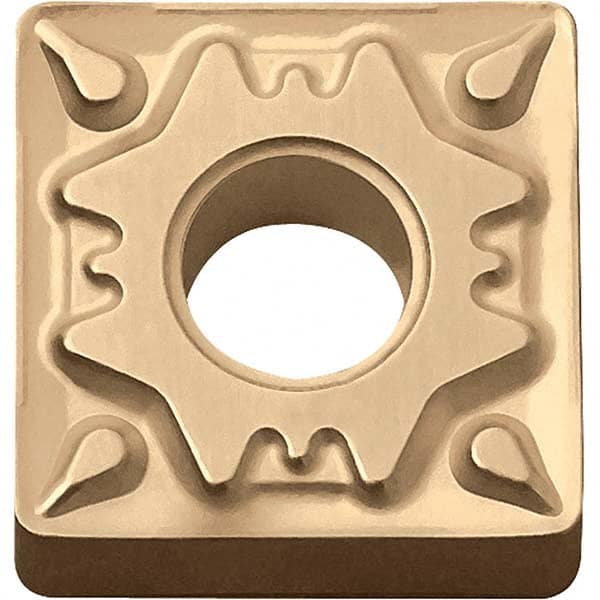

Kyocera - SNMG433 HQ Grade PV720 Cermet Turning Insert
Item #: 11383973
Brand: Kyocera
Model #: 8862664
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 433 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | SNMG120412HQ |
| Rake | Negative |
| Coating Process | PVD |
| Manufacturers Catalog Number | SNMG433HQ PV720 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | SNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Square |
