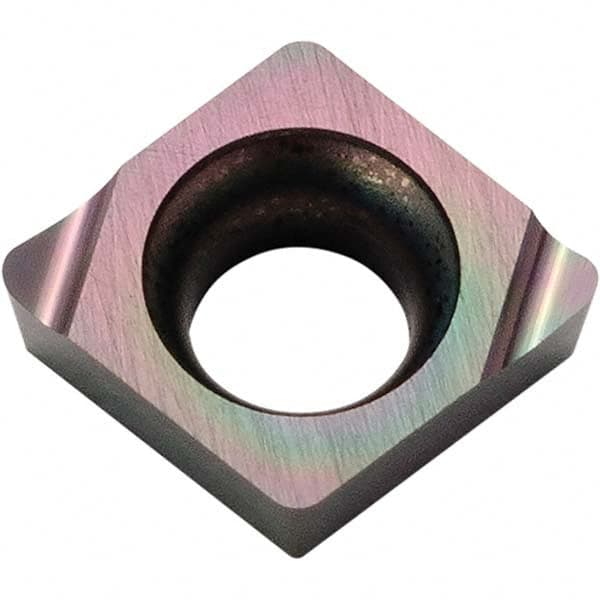

Kyocera - CCET110902 M-F Grade PDL010 Diamond-Like Carbon (DLC) Turning Insert
Item #: 97769970
Brand: Kyocera
Model #: 8860758
| Product Specifications | |
|---|---|
| Insert Style | CCET |
| Insert Size | 110902 |
| Material | Diamond-Like Carbon (DLC) |
| Inscribed Circle (Decimal Inch) | 0.1378 |
| Thickness (Decimal Inch) | 0.0551 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | PDL010 |
| Coating | Diamond-Like Carbon (DLC) |
| Chip Breaker | M-F |
| Hole Diameter (Decimal Inch) | 0.0748 |
| ISO Number | CCET030101ML-F |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | DLC |
| Manufacturers Catalog Number | CCET110902MLF PDL010 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Series | CCET |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing, Sub-Spindle |
| MultiUseTool | Yes |
| Shape | Diamond |
