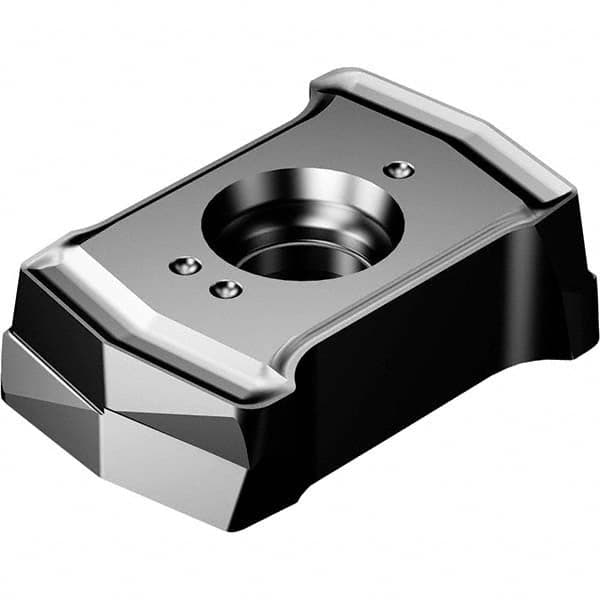

Sandvik Coromant - Indexable Drill Inserts Insert Style: DS20 Insert Size: 0407
Item #: 13324660
Brand: Sandvik Coromant
Model #: 7549945
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Indexable Drill Inserts; Insert Style: DS20 ; Insert Size: 0407 ; Material: Carbide ; Manufacturer's Grade: 4344 ; Width (mm): 9.29 ; Thickness (mm): 4.25
| Insert Style | DS20 |
| Insert Size | 0407 |
| Material | Carbide |
| Manufacturer's Grade | 4344 |
| Width (mm) | 9.29 |
| Thickness (mm) | 4.25 |
| Corner Radius (mm) | 0.70 |
| Shape | Rectangle |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | H5W |
