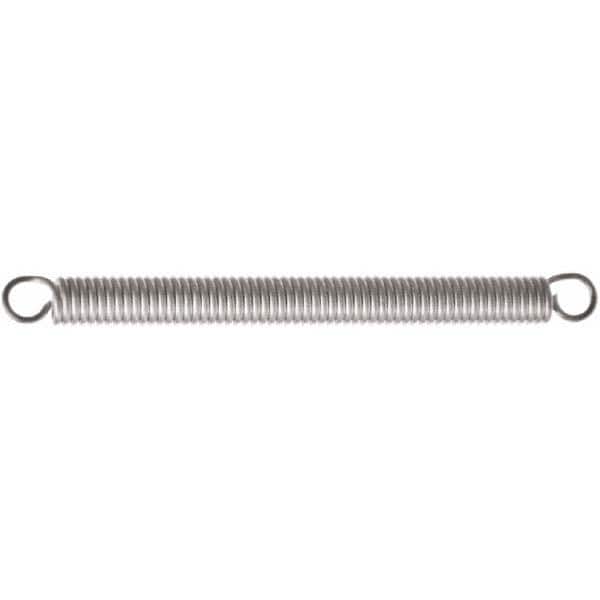

Associated Spring Raymond - 14mm OD, 136.61 N Max Load, 52.7mm Max Ext Len, Stainless Steel Extension Spring
Item #: 69156990
Brand: Associated Spring Raymond
Model #: T42330
| Product Specifications | |
|---|---|
| Type | Extension |
| Material | Stainless Steel |
| Spring Rate Pounds per Inch (Pounds) | 44.8200 |
| Initial Tension (N) | 21.03000069 |
| Initial Tension (Lb.) | 4.73000002 |
| Free Length (mm) | 38 |
| Free Length (Decimal Inch) | 1.4961 |
| Outside Diameter (mm) | 14 |
| Outside Diameter (Decimal Inch) | 0.5512 |
| Maximum Work Load (N) | 136.61000061 |
| Maximum Extended Length (mm) | 52.70 |
| Maximum Extended Length (Decimal Inch) | 2.0748 |
