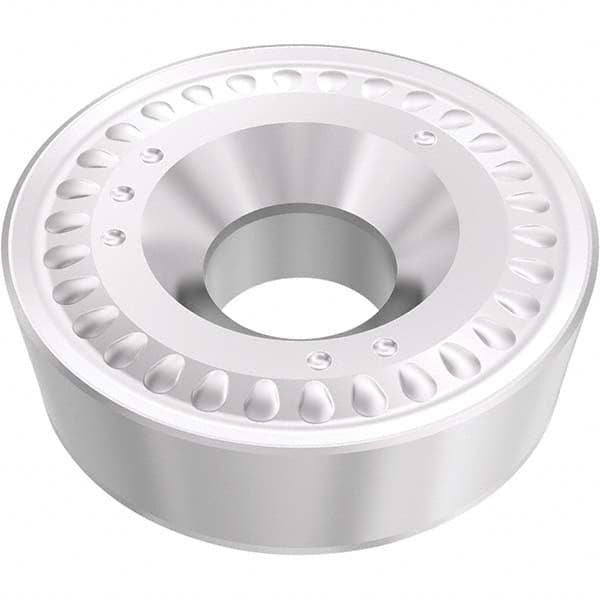

Seco - RCMX320900 RR93 Grade TP1501 Carbide Turning Insert
Item #: 96216593
Brand: Seco
Model #: 03084616
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 320900 |
| Material | Carbide |
| Length (mm) | 32.00 |
| Inscribed Circle (mm) | 32.00 |
| Thickness (Inch) | 3/8 |
| Corner Radius (mm) | 16 |
| Manufacturer's Grade | TP1501 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | RR93 |
| Hole Diameter (mm) | 10.40 |
| ISO Number | RCMX320900-H-RR93 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Proprietary Coating Designation | Duratomic |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMX320900-H-RR93 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | RCMX |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| Shape | Round |
