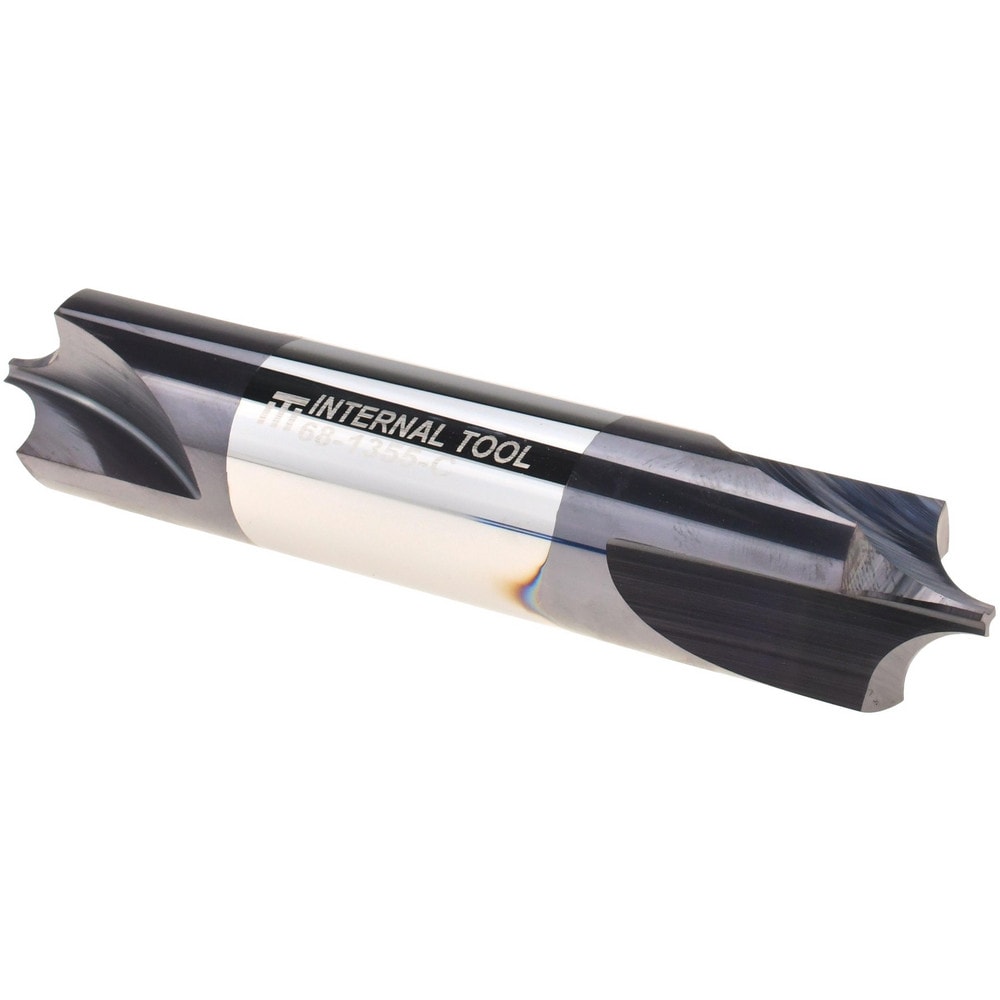

Corner Rounding End Mill: 5/16" Radius, 3/4" Dia, 3 Flutes, Solid Carbide
Item #: 63465835
Brand: Made in USA
Model #: 68-1355-C
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Radius (Decimal Inch) | 0.3125 |
| Radius (Inch) | 5/16 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Tip Diameter (Decimal Inch) | 0.1200 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 68 |
| Helix Angle | 0 |
| Coolant Through | No |
| Single Or Double End | Double End |
| Coating/Finish | AlTiN |
| UNSPSC Code | 27112803 |
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Radius (Decimal Inch) | 0.3125 |
| Radius (Inch) | 5/16 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Tip Diameter (Decimal Inch) | 0.1200 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 68 |
| Helix Angle | 0 |
| Coolant Through | No |
| Single Or Double End | Double End |
| Coating/Finish | AlTiN |
| UNSPSC Code | 27112803 |
| MSC Part # | 63465835 |
| Mfr Part # | 68-1355-C |
