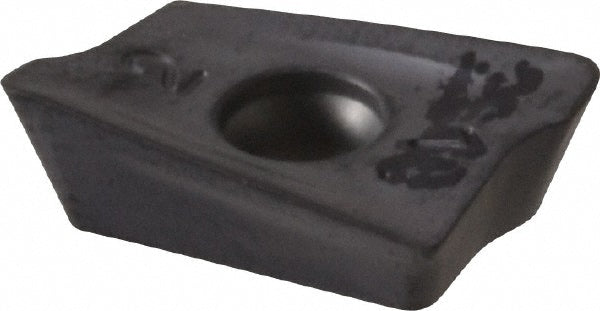

Milling Insert: AOMT110308R IN2040, Solid Carbide
Item #: 48793269
Brand: Ingersoll Cutting Tools
Model #: 5809739
Product Specifications
| Insert Style | AOMT |
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2040 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1550 |
| Coating/Finish | TiAlN |
| Insert Size Code | 110308 |
| Material Grade | Fine Grain; Medium Grain |
| Inscribed Circle (Decimal Inch) | 0.2830 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4700 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | AOMT110308R IN2040 |
| Iso Code | AOMT110308R |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5809739 |
| Cutter Series Compatibility | 12J1F; 2J1F |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2830 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4490 |
