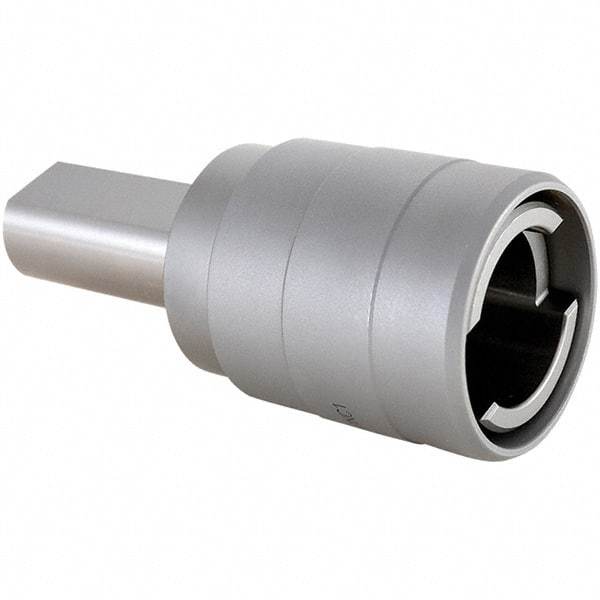

Techniks - 1-1/2" Straight Shank Diam Rigid Tapping Adapter - 1/2 to 1-3/8" Tap Capacity, 3.44" Projection
Item #: 19890623
Brand: Techniks
Model #: 21880/INC1-1/2
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Minimum Tap Capacity (Inch) | 1/2 |
| Maximum Tap Capacity (Inch) | 1-3/8 |
| Projection (Decimal Inch) | 3.4400 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | M12, M12.5 |
| Minimum Collet Capacity (Inch) | 1/2 |
| Maximum Collet Capacity (Inch) | 1-3/8 |
| Maximum Collet Capacity (mm) | M33 |
| Overall Length (Decimal Inch) | 6.9400 |
