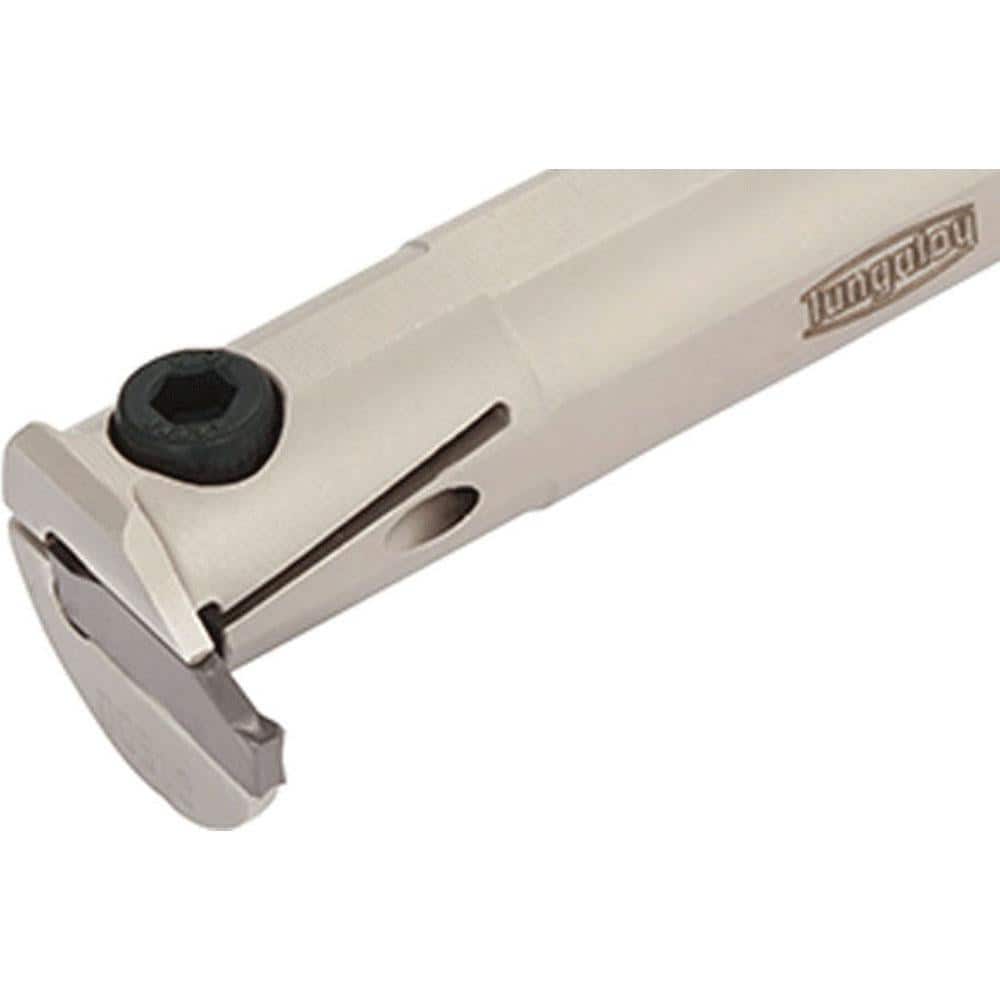

Indexable Grooving Toolholder: CTIL20-4T06-D250, Uses 4 Inserts, Through Coolant
Item #: 19882679
Brand: Tungaloy
Model #: 6860644
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 4 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | CTI |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 4 |
| Shank Height (mm) | 18.00 |
| Series | CTI |
| Shank Length (mm) | 160.00 |
| Overall Length (mm) | 160.00 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (mm) | 15.80 |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 25.0000 |
| Head Height (Decimal Inch) | 18.0000 |
| Head Height (Inch) | 18 |
| Head Height (mm) | 18.00 |
| Head Length (mm) | 40.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
