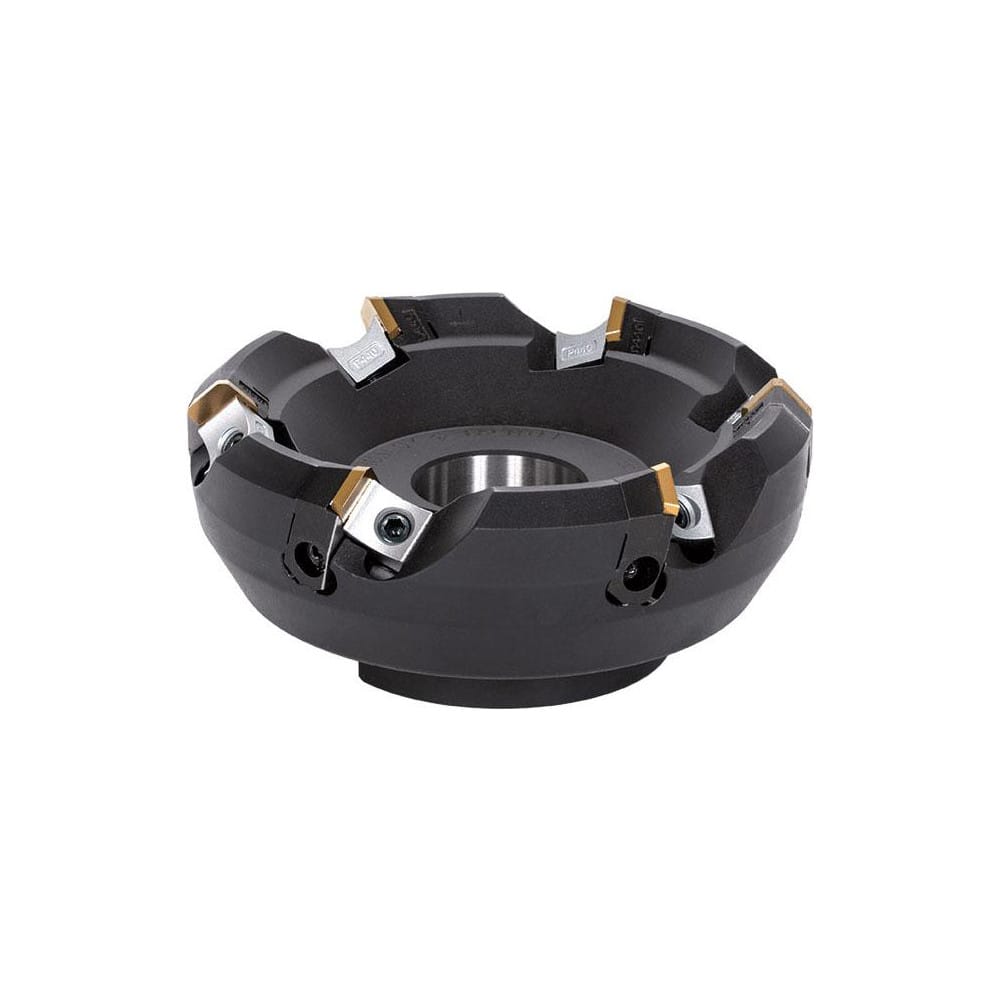

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 315.00; Maximum Cutting Diameter (mm): 327.00; Maximum Depth of Cut (mm): 4.00; Arbor Hole Diameter (mm): 47.63; Lead Angle: 45; Compatible Insert Size Code: SDEN42ZTN; Cutter Style: TMD
Item #: 19882653
Brand: Tungaloy
Model #: 6808035
Product Specifications
| Minimum Cutting Diameter (mm) | 315.00 |
| Maximum Cutting Diameter (mm) | 327.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Arbor Hole Diameter (mm) | 47.63 |
| Lead Angle | 45 |
| Compatible Insert Size Code | SDEN42ZTN |
| Cutter Style | TMD |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 15 |
| Series | TMD |
| Keyway Width (mm) | 25.40 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 14 |
| Coolant Through | No |
