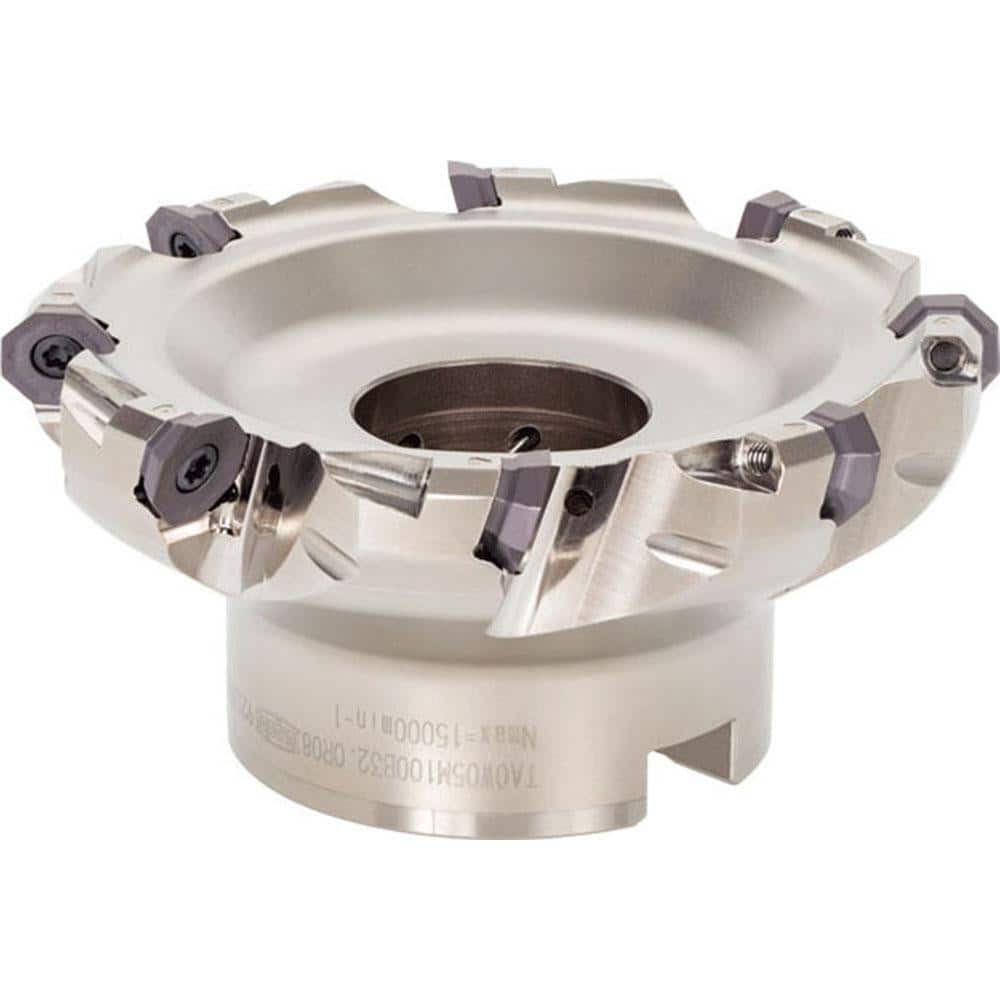

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (Decimal Inch): 5.0000; Minimum Cutting Diameter (Inch): 5; Maximum Cutting Diameter (Decimal Inch): 5.3000; Maximum Depth of Cut (Decimal Inch): 0.1180; Arbor Hole Diameter (mm): 1.50; Arbor
Item #: 19879212
Brand: Tungaloy
Model #: 6791566
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.3000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Arbor Hole Diameter (mm) | 1.50 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 41 |
| Compatible Insert Size Code | OWMT05T3AFER-MM |
| Cutter Style | TAOW |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 23 |
| Series | TAOW |
| Overall Height (Decimal Inch) | 2.4800 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 10 |
| Coolant Through | Yes |
