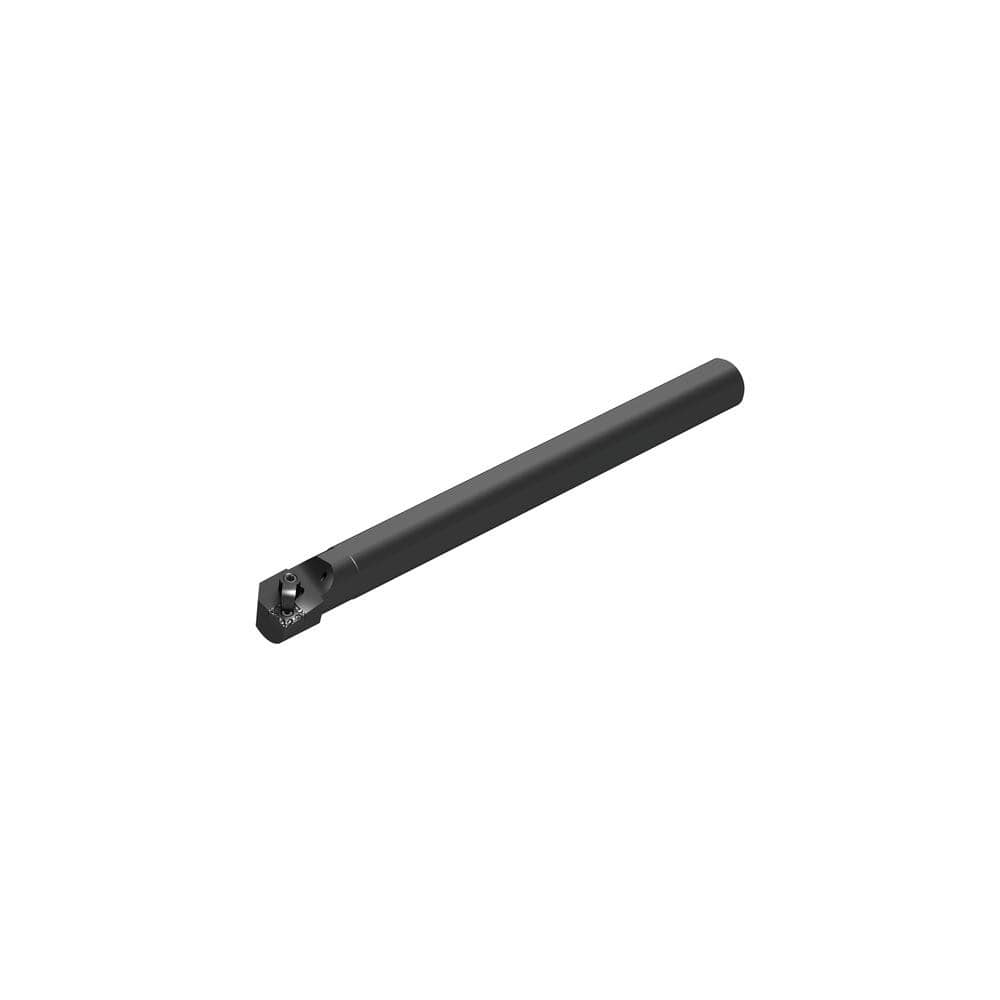

Indexable Boring Bar: S32V MCLNR 4, 2.00 mm Shank Dia, 95.00° N/A Steel 16.0000″ OAL, Clamp & Pin,
Item #: 19877786
Brand: Ceratizit
Model #: 7870443242
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 2.5620 |
| Maximum Bore Depth (Decimal Inch) | 4.0000 |
| Maximum Bore Depth (Inch) | 4 |
| Toolholder Style | MCLNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (mm) | 2.00 |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Overall Length (mm) | 16.00 |
| Overall Length (Inch) | 16 |
| Compatible Insert Size Code | CN..43. |
| Insert Holding Method | Pin; Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 95.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 1.2811 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
