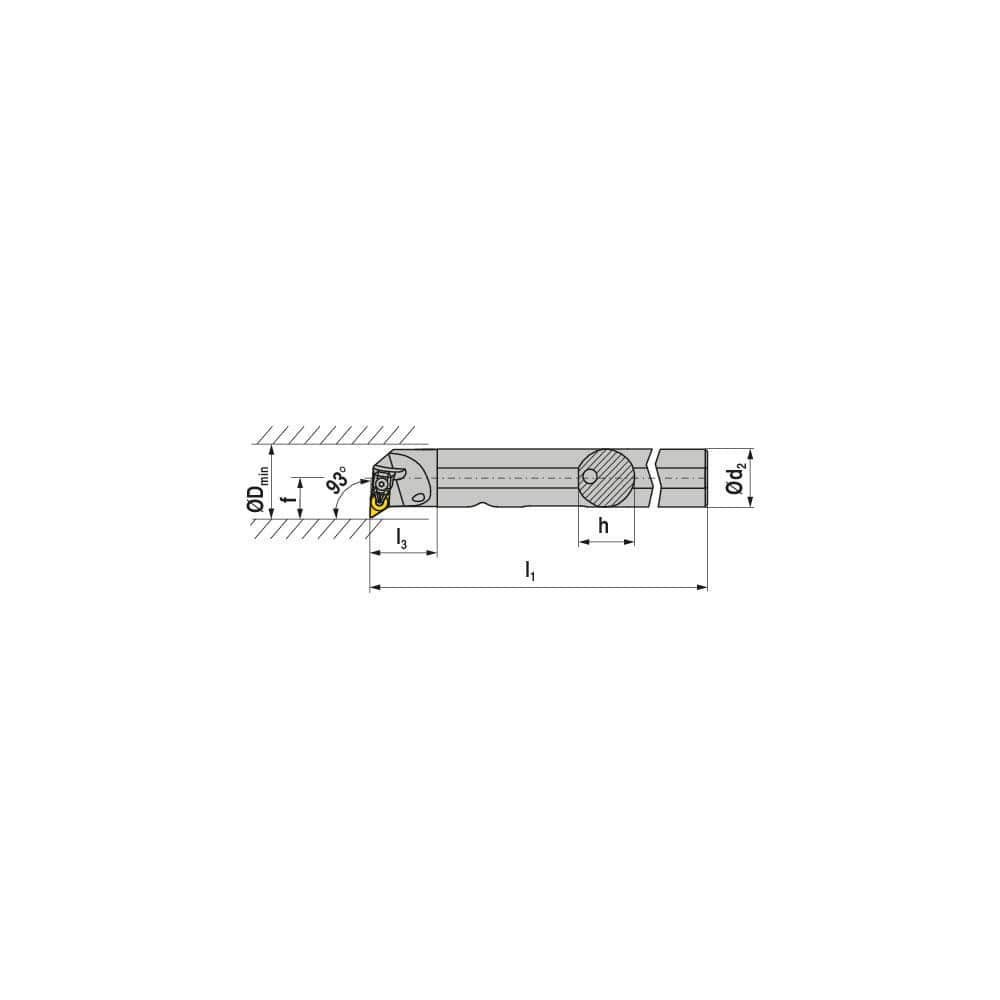

Indexable Boring Bar: A40T DDUNR 15, 50.00 mm Min Bore, 40.00 mm Shank Dia, 93.00° N/A Steel 300.0000″ OAL, Clamp,
Item #: 19866458
Brand: Ceratizit
Model #: 70568840
Product Specifications
| Minimum Bore Diameter (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.7717 |
| Toolholder Style | DDUNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 40.0000 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Inch) | 40 |
| Overall Length (Decimal Inch) | 300.0000 |
| Overall Length (mm) | 300.00 |
| Overall Length (Inch) | 300 |
| Compatible Insert Size Code | DN..44. |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-D |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 27.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
