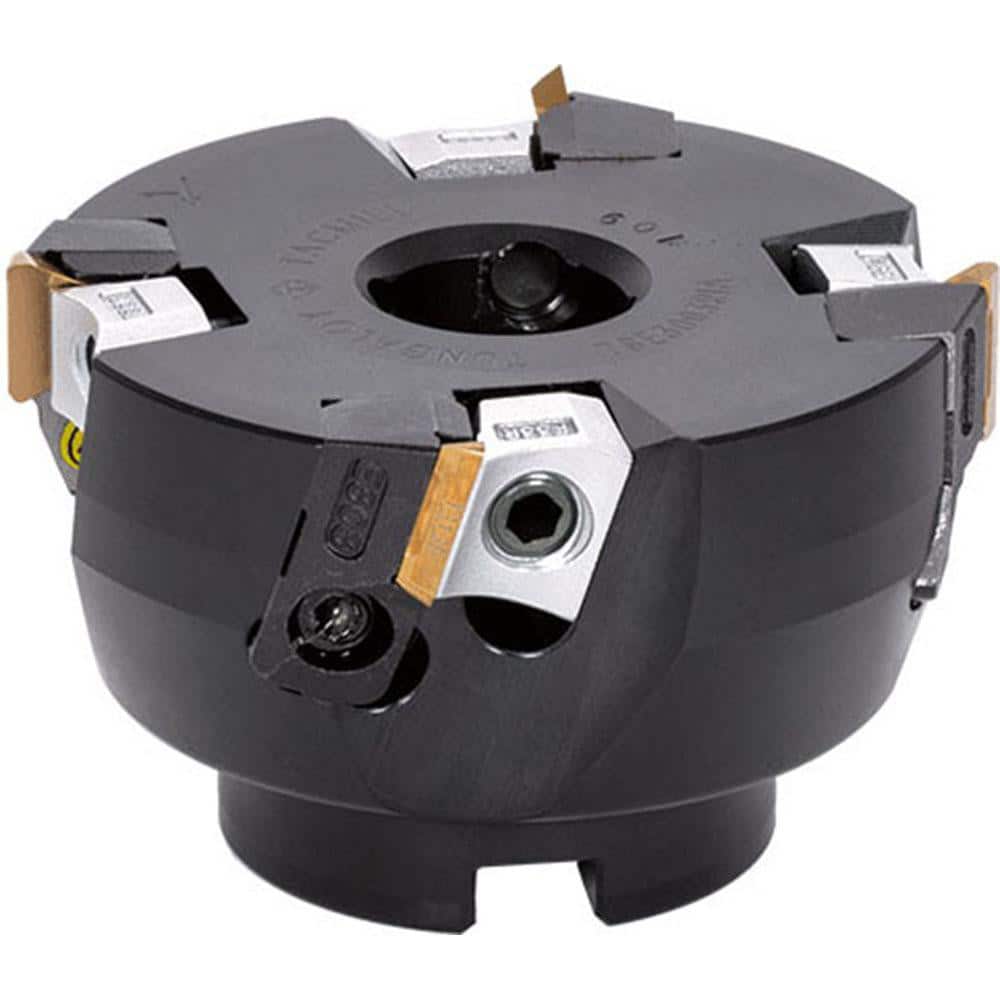

Indexable Square-Shoulder Face Mill: TSE3006RIA, 50.8000″ Arbor Hole Dia, Uses 8, TEEN Inserts, No, Series TSE
Item #: 19865336
Brand: Tungaloy
Model #: 6809335
Product Specifications
| Minimum Cutting Diameter (mm) | 160.00 |
| Maximum Cutting Diameter (mm) | 160.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 50.8000 |
| Compatible Insert Size Code | TEEN |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | TSE |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Lead Angle | 90 |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 17.0 |
| Series | TSE |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Keyway Width (Inch) | 19 |
| Keyway Width (mm) | 19.00 |
| Keyway Width (Decimal Inch) | 19.0000 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
