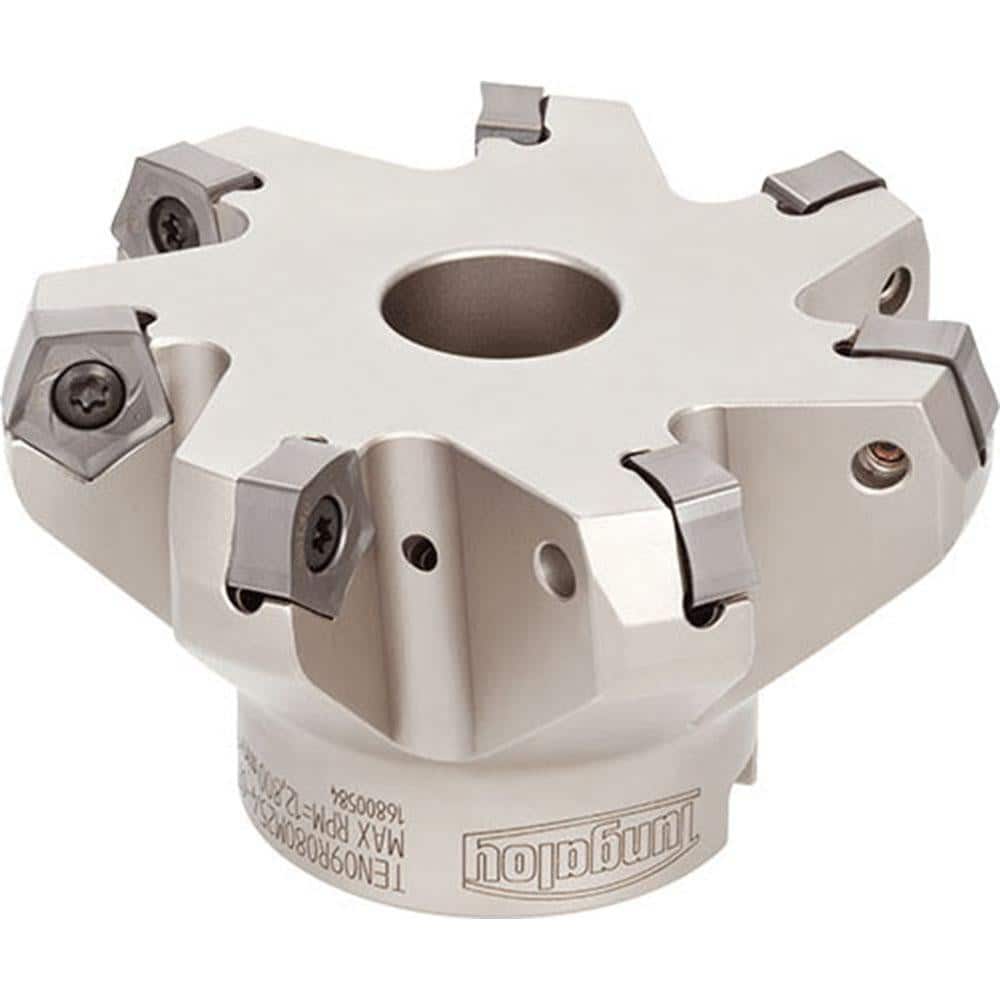

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 200.00; Maximum Cutting Diameter (mm): 205.73; Maximum Depth of Cut (mm): 6.40; Arbor Hole Diameter (mm): 60.00; Lead Angle: 70; Compatible Insert Size Code: PNMU0905GNEN-MJ; Cutter Styl
Item #: 19861509
Brand: Tungaloy
Model #: 6797267
Product Specifications
| Minimum Cutting Diameter (mm) | 200.00 |
| Maximum Cutting Diameter (mm) | 205.73 |
| Maximum Depth of Cut (mm) | 6.40 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 70 |
| Compatible Insert Size Code | PNMU0905GNEN-MJ |
| Cutter Style | TEN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -6 |
| Series | TEN |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 14 |
| Coolant Through | No |
