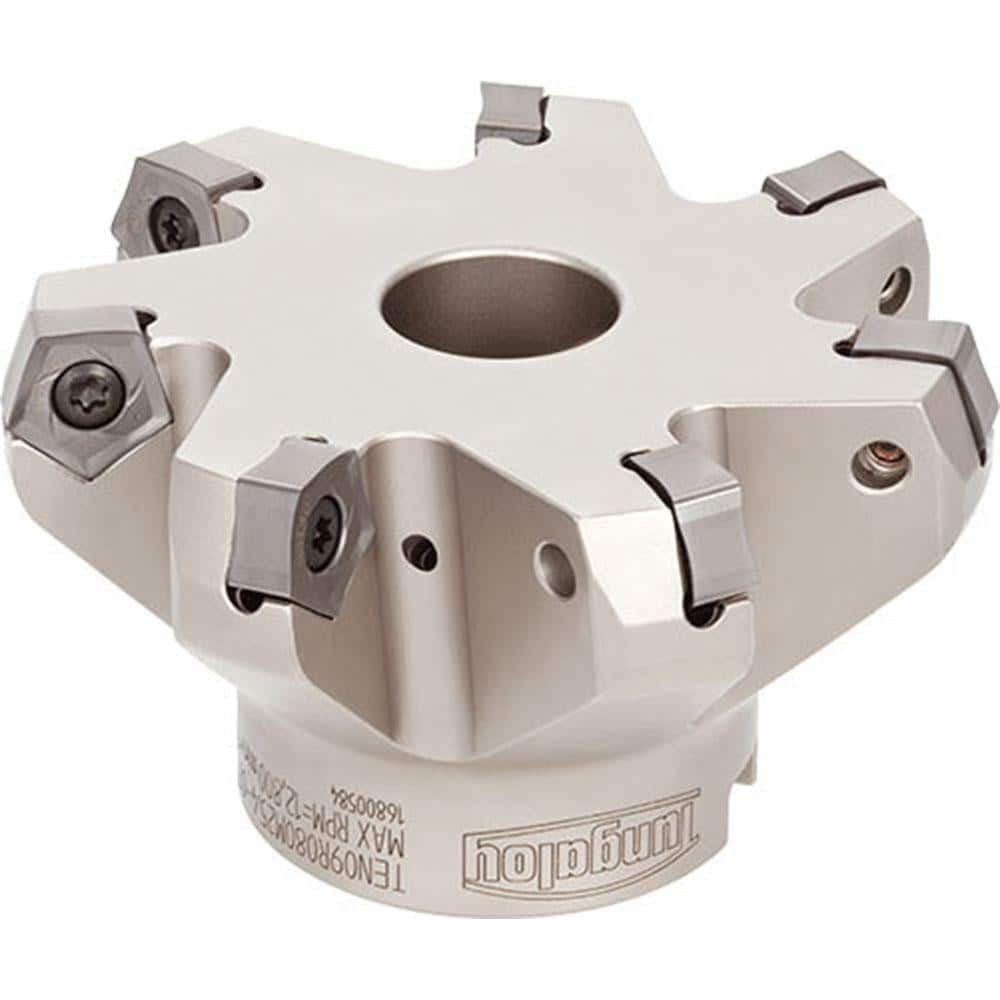

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (Decimal Inch): 8.0000; Minimum Cutting Diameter (Inch): 8; Maximum Cutting Diameter (Decimal Inch): 8.2300; Maximum Depth of Cut (Decimal Inch): 0.2520; Arbor Hole Diameter (mm): 2.50; Arbor
Item #: 19861491
Brand: Tungaloy
Model #: 6797269
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 8.0000 |
| Minimum Cutting Diameter (Inch) | 8 |
| Maximum Cutting Diameter (Decimal Inch) | 8.2300 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Arbor Hole Diameter (mm) | 2.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Lead Angle | 70 |
| Compatible Insert Size Code | PNMU0905GNEN-MJ |
| Cutter Style | TEN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -6 |
| Series | TEN |
| Overall Height (Decimal Inch) | 2.4800 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 14 |
| Coolant Through | No |
