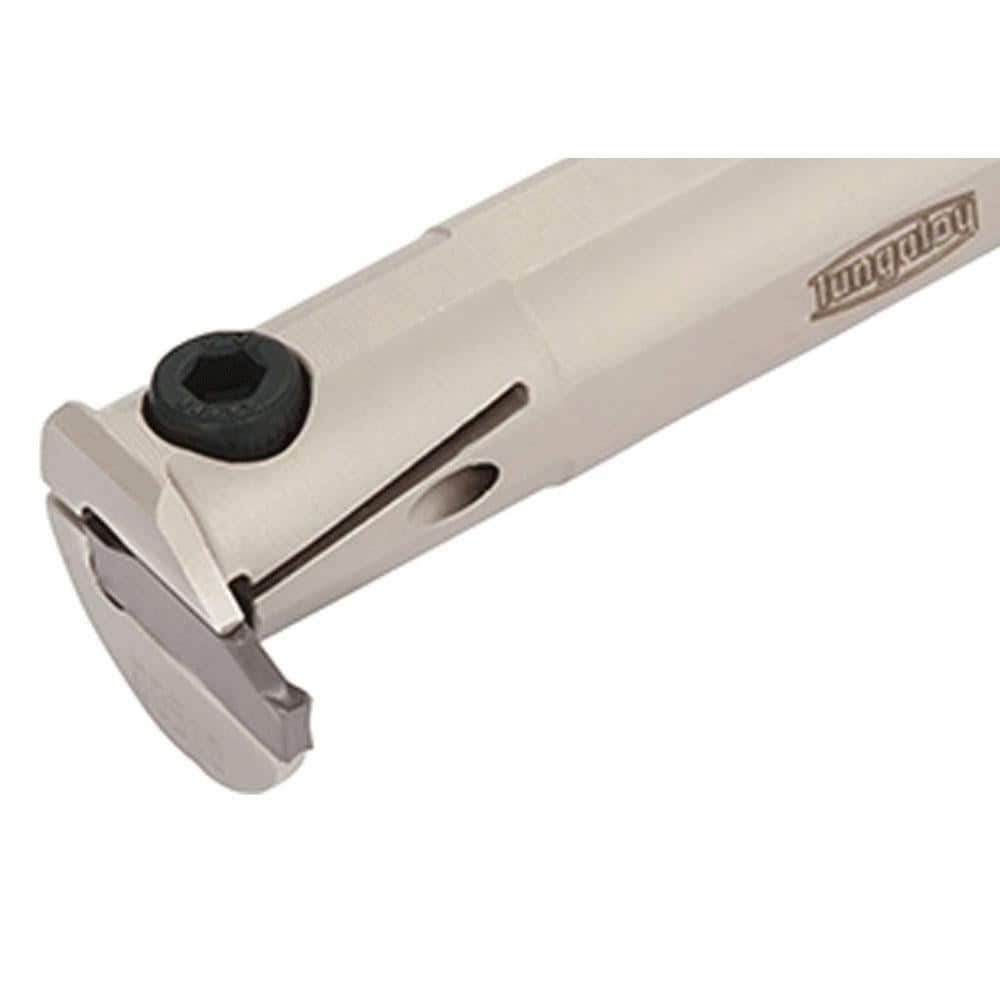

Indexable Grooving Toolholder: CTIL16-3T05-D16, 0.1970″ Max Depth, Uses 3 Inserts, 0.9060″ Shank Height, Through Coolant
Item #: 19859487
Brand: Tungaloy
Model #: 6880692
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 3 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | CTI |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 3 |
| Shank Height (Decimal Inch) | 0.9060 |
| Series | CTI |
| Shank Length (Decimal Inch) | 8.0000 |
| Shank Length (Inch) | 8 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (Decimal Inch) | 0.6890 |
| Minimum Hole Diameter (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 0.9060 |
| Head Length (Decimal Inch) | 1.5750 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
