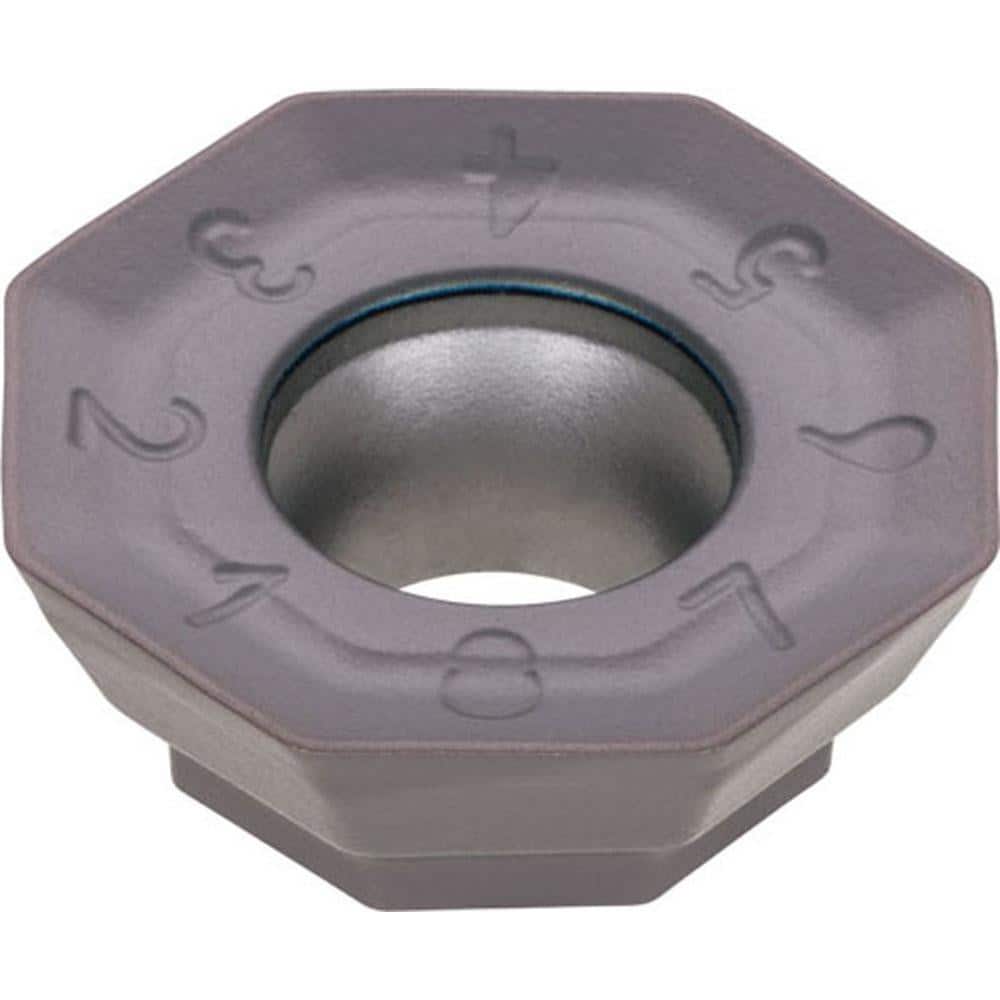

Milling Insert: AH120, Solid Carbide N/A Finish,
Item #: 19858794
Brand: Tungaloy
Model #: 6785211
Product Specifications
| Insert Style | OWMT |
| Insert Size Code | 05 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH120 |
| Inscribed Circle (Decimal Inch) | 0.4889 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Insert Hand | Neutral |
| Series | OWMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2010 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Chip Breaker | MM |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1770 |
