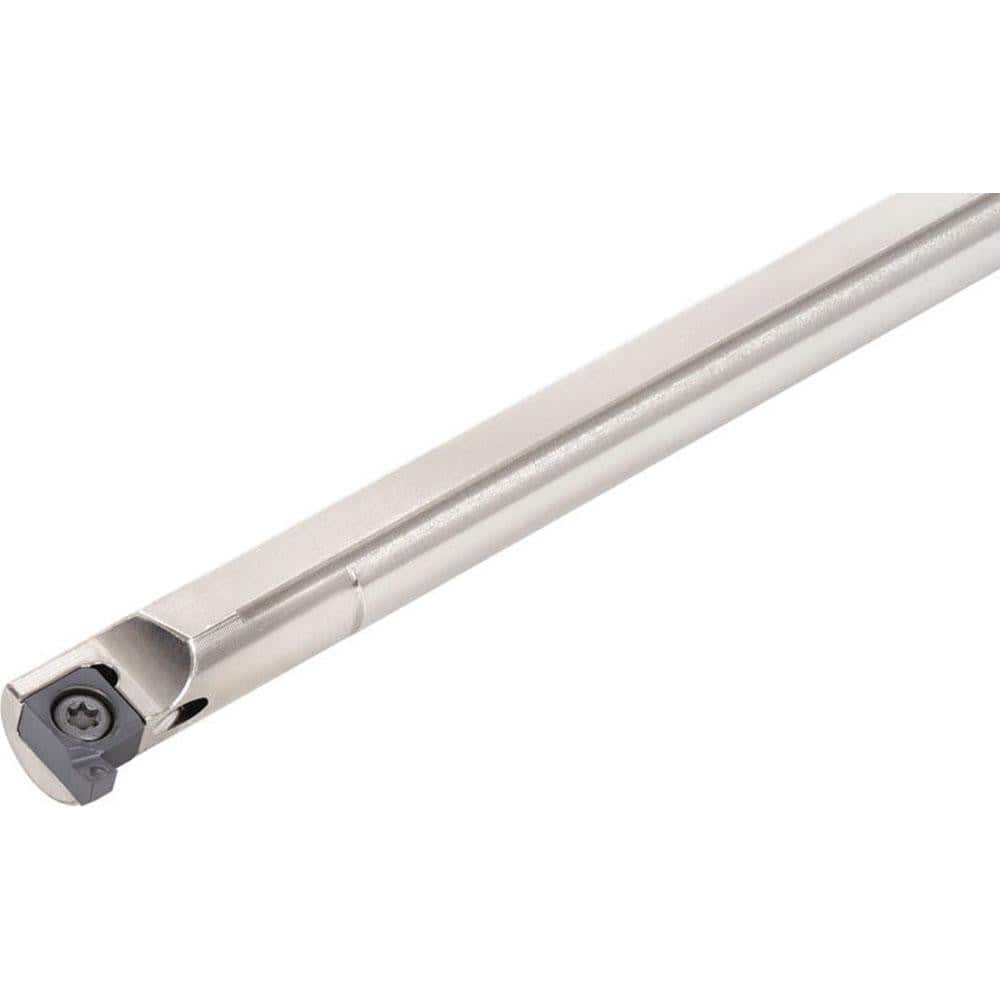

Indexable Grooving Toolholder: A20R-SNGR09-D240, Uses 9 Inserts, Through Coolant
Item #: 19846542
Brand: Tungaloy
Model #: 6789269
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 9 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (mm) | 3.50 |
| Toolholder Style | SNG |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 9 |
| Shank Width/Diameter (mm) | 19.00 |
| Shank Height (mm) | 18.00 |
| Series | SNG |
| Overall Length (mm) | 200.00 |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (mm) | 13.60 |
| Minimum Hole Diameter (mm) | 24.00 |
| Minimum Hole Diameter (Decimal Inch) | 24.0000 |
| Head Height (Decimal Inch) | 18.0000 |
| Head Height (Inch) | 18 |
| Head Height (mm) | 18.00 |
| Head Length (mm) | 25.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
