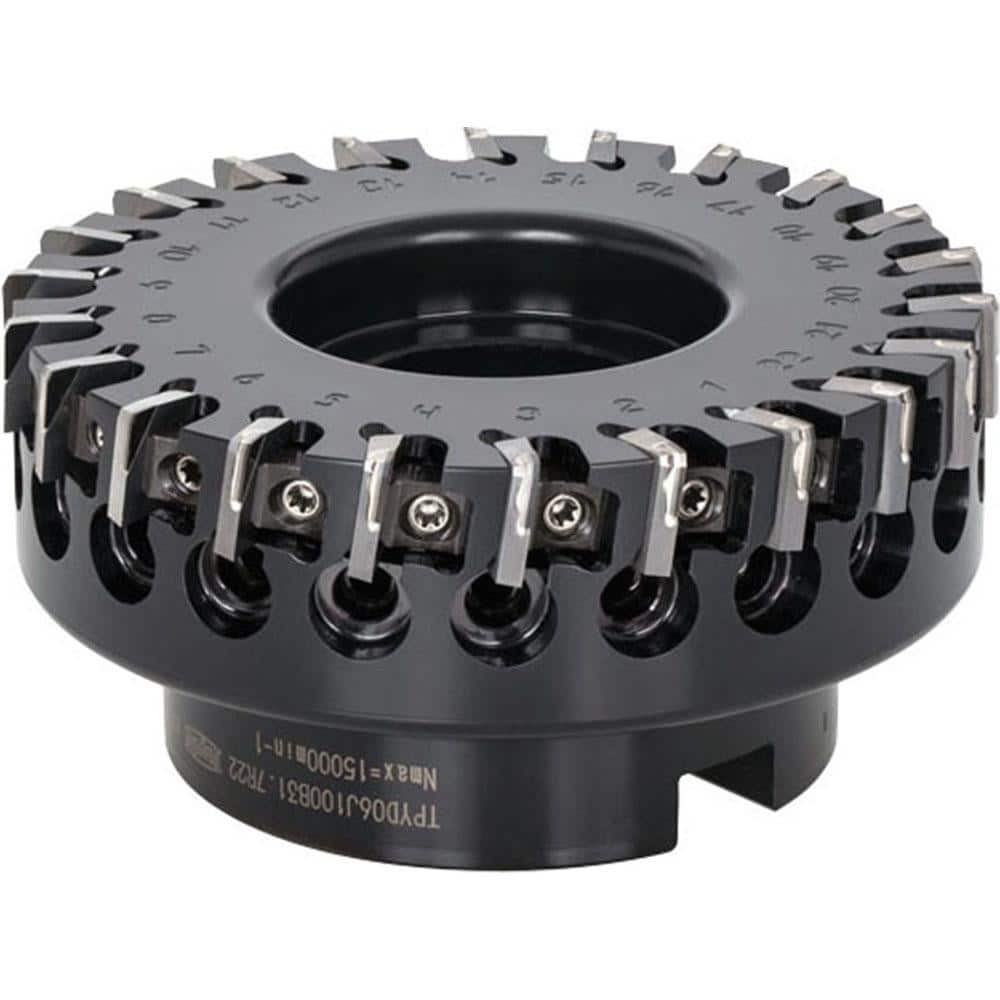

Indexable Square-Shoulder Face Mill: TPYD06U2.50B0.75R10, 0.7500″ Arbor Hole Dia, 0.1770″ Max Cutting Depth Uses 10, YDEN Inserts, Through Coolant, Series TPYD
Item #: 19829076
Brand: Tungaloy
Model #: 6782258
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5790 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Arbor Hole Diameter (mm) | 0.75 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | YDEN |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | TPYD |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Lead Angle | 90 |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 9.0 |
| Series | TPYD |
| Maximum Body Diameter (Decimal Inch) | 2.5790 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.7720 |
| Tool Application | Facing |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
