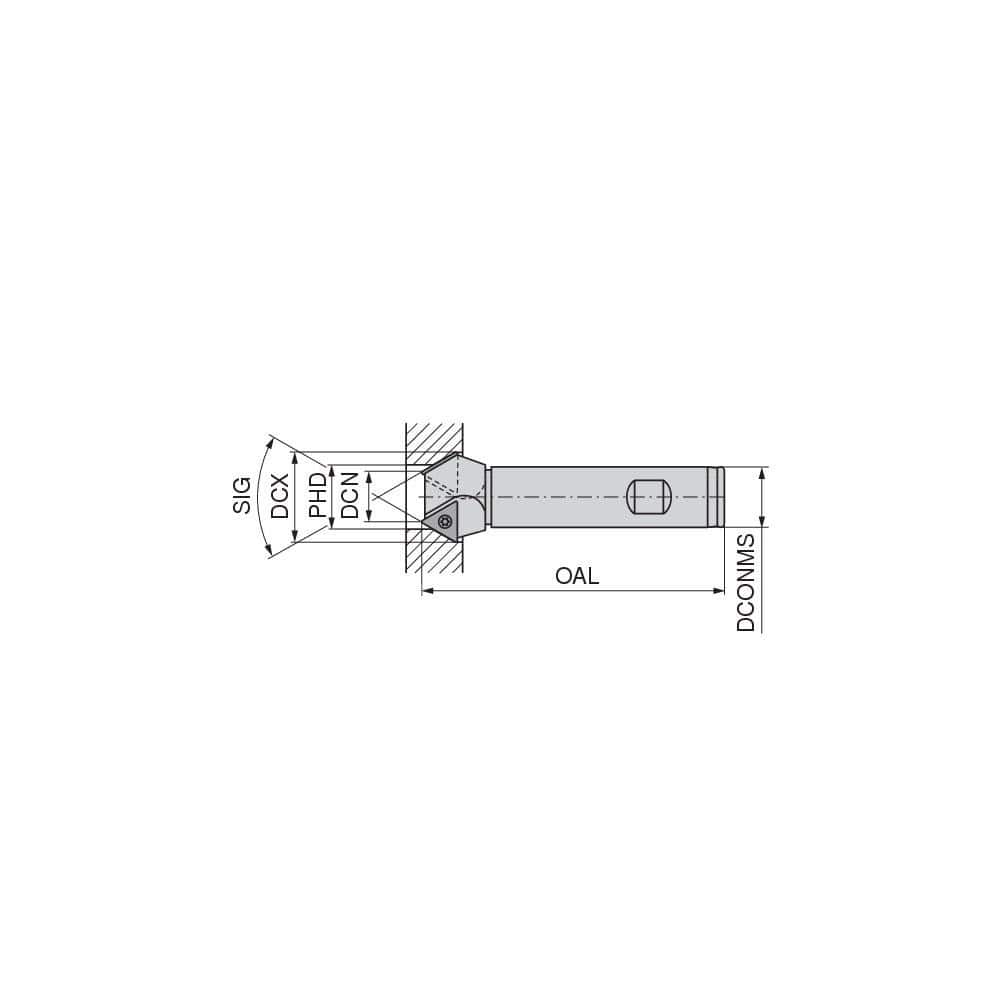

Indexable Countersinks; Included Angle: 90.00; Maximum Cutting Diameter (Decimal Inch): 1.4570 in; Maximum Cutting Diameter (mm): 1.4570 in; Minimum Cutting Diameter (Decimal Inch): 0.7480 in; Maximum Depth Of Cut: 0.3350 in; Shank Diameter (Inch): 0.7500
Item #: 19828938
Brand: Komet
Model #: 5819637000
Product Specifications
| Included Angle | 90.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.4570 in |
| Maximum Cutting Diameter (mm) | 1.4570 in |
| Minimum Cutting Diameter (Decimal Inch) | 0.7480 in |
| Maximum Depth Of Cut | 0.3350 in |
| Shank Diameter (Inch) | 0.7500 |
| Shank Diameter (mm) | 0.7500 |
| Shank Type | Weldon Flat |
| Overall Length (mm) | 3.94 |
| Overall Length (Decimal Inch) | 3.94 |
| Overall Length (Inch) | 3.94 |
| Compatible Insert Style | TOHX |
| Compatible Insert Size Code | 140305 |
| Insert Shape | Triangle |
| Number of Countersink Inserts | 2 |
| Tool Material | Carbide |
| Coated | Coated |
| Rake | Neutral |
| Coating | Black Oxide |
| Body Diameter (Inch) | 0.7500 |
| Number Of Flutes | 2 |
| Tool Application | Countersinking |
| Series | WPS |
| Through Coolant | Normal Pressure |
