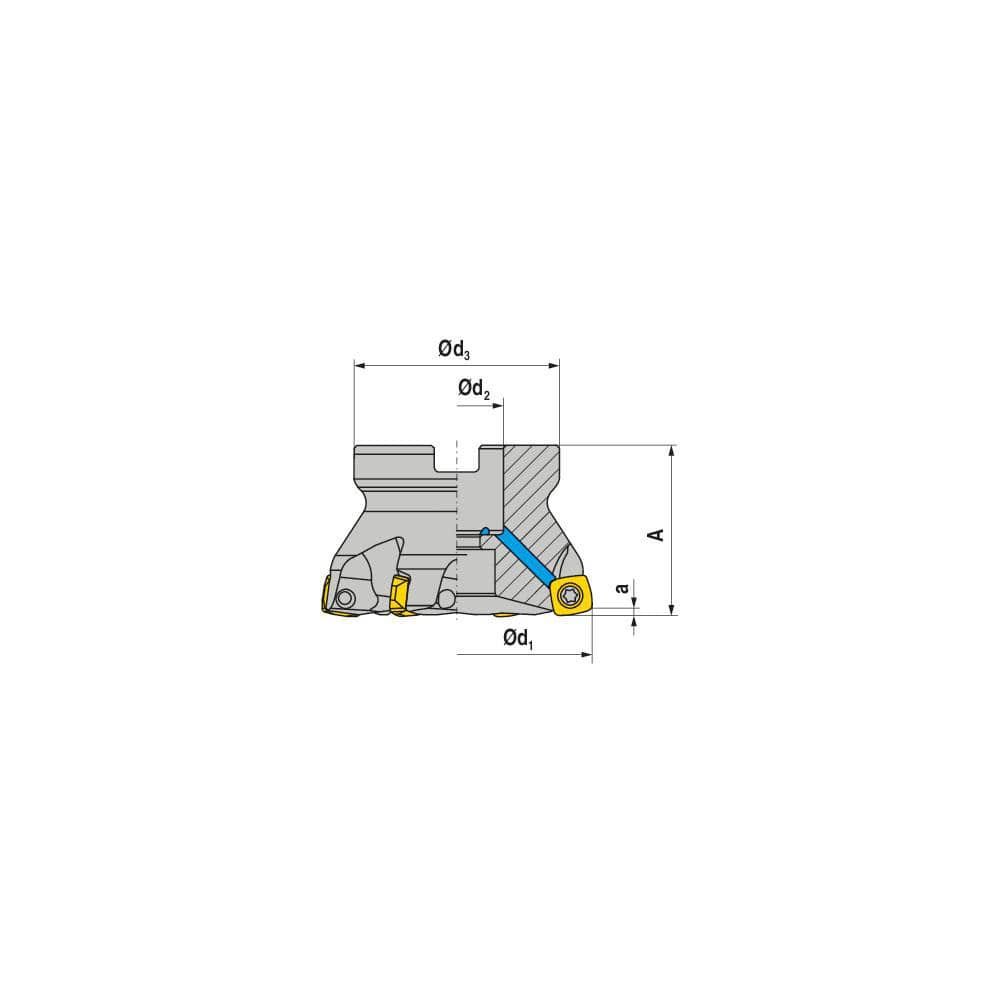

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 44.00 mm; Maximum Cutting Diameter: 52.00 mm; Maximum Depth Of Cut: 1.00 mm; Arbor Hole Diameter (mm): 22.00; Compatible Insert Size Code: XDLX 09T3..; Maximum Ramping Angle: 0.8; Series: AHFC-09;
Item #: 19726603
Brand: Ceratizit
Model #: 50683152
Product Specifications
| Minimum Cutting Diameter | 44.00 mm |
| Maximum Cutting Diameter | 52.00 mm |
| Maximum Depth Of Cut | 1.00 mm |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | XDLX 09T3.. |
| Maximum Ramping Angle | 0.8 |
| Series | AHFC-09 |
| Cutter Style | AHFC |
| Number of Cutter Inserts | 6 |
| Through Coolant | Normal Pressure |
| Maximum Body Diameter | 52.00 mm |
| Overall Height | 40.00 mm |
| Maximum Rpm | 23000.000 |
| Tool Application | Face Milling |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp Screw |
| Number of Flutes | 6 |
