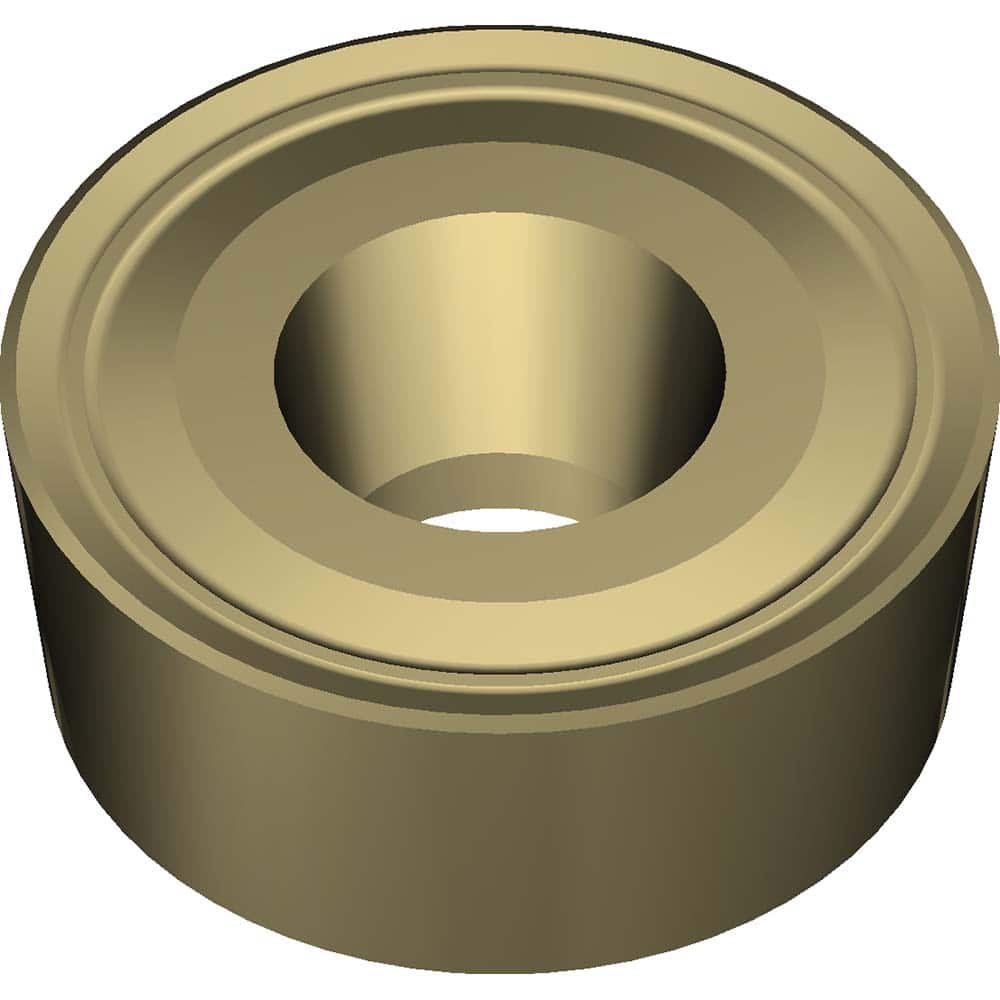

RCMX320900 AC8020P Carbide Turning Insert Absotech Finish, 1.2598″ Long, 1.2598″ Inscribed Circle, 0″ Corner Radius, 0.3748″ Thick, Series AC8020P
Item #: 19640929
Brand: Sumitomo
Model #: 19W1315
Product Specifications
| Insert Style | RCMX |
| Insert Shape Code | R |
| Insert Size Code | 320900 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8020P |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.3748 |
| Relief Angle | 7 |
| Series | AC8020P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 1.2598 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Steel |
| Iso Code | RCMX3209M0N-RP |
| Manufacturers Catalog Number | RCMX320900-AC8020P |
| Material Grade | P20 |
| Chip Breaker | ERP |
| Coating/Finish | Absotech |
