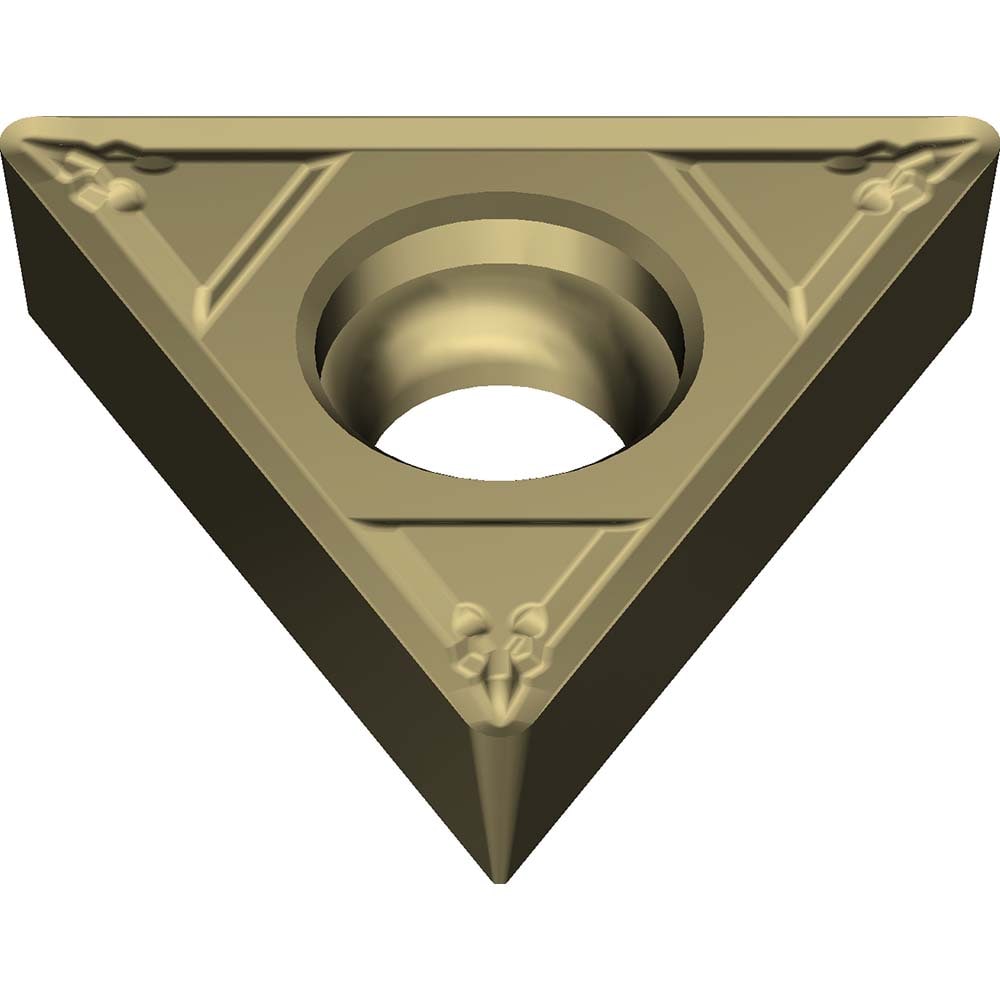

TPMT630.5ELB AC8020P Carbide Turning Insert Absotech Finish, 0.3228″ Long, 0.1874″ Inscribed Circle, 0.0079″ Corner Radius, 0.0937″ Thick, Series AC8020P
Item #: 19640713
Brand: Sumitomo
Model #: 19W1CPH
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 630.5 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8020P |
| Inscribed Circle (Decimal Inch) | 0.1874 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC8020P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3228 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Steel |
| Iso Code | TPMT080202N-LB |
| Manufacturers Catalog Number | TPMT630.5ELB-AC8020P |
| Material Grade | P20 |
| Chip Breaker | ELB |
| Coating/Finish | Absotech |
