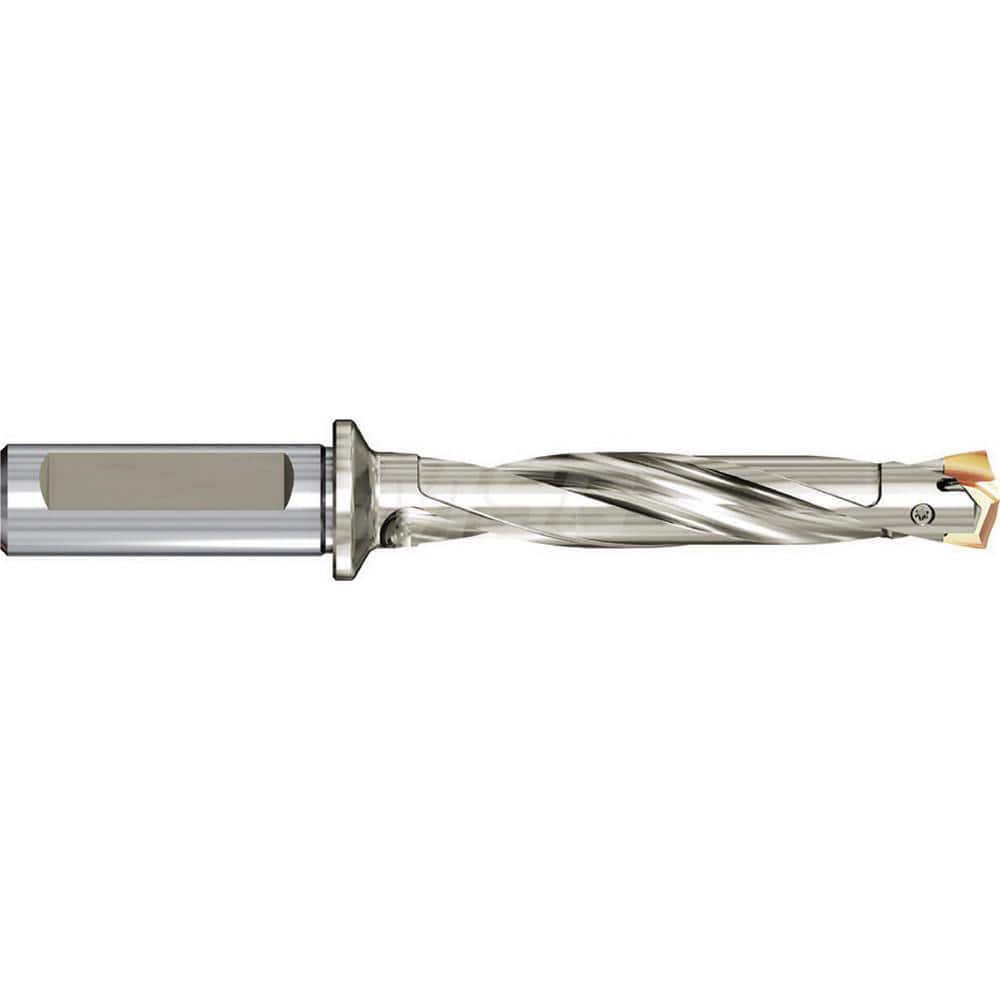

Replaceable Tip Drill: 0.6299 to 0.6653'' Drill Dia, 5.3593″ Max Depth Seat Size 0.2160, Through Coolant
Item #: 19631407
Brand: YG-1
Model #: ZD16008075
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (Decimal Inch) | 0.6653 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 5.3593 |
| Insert Style | S16 |
| Shank Diameter (Inch) | 3/4 |
| Insert Seat Size | 0.2160 |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Series | ZD16008 |
| Toolholder Style | i-one |
| Coolant Through | Yes |
