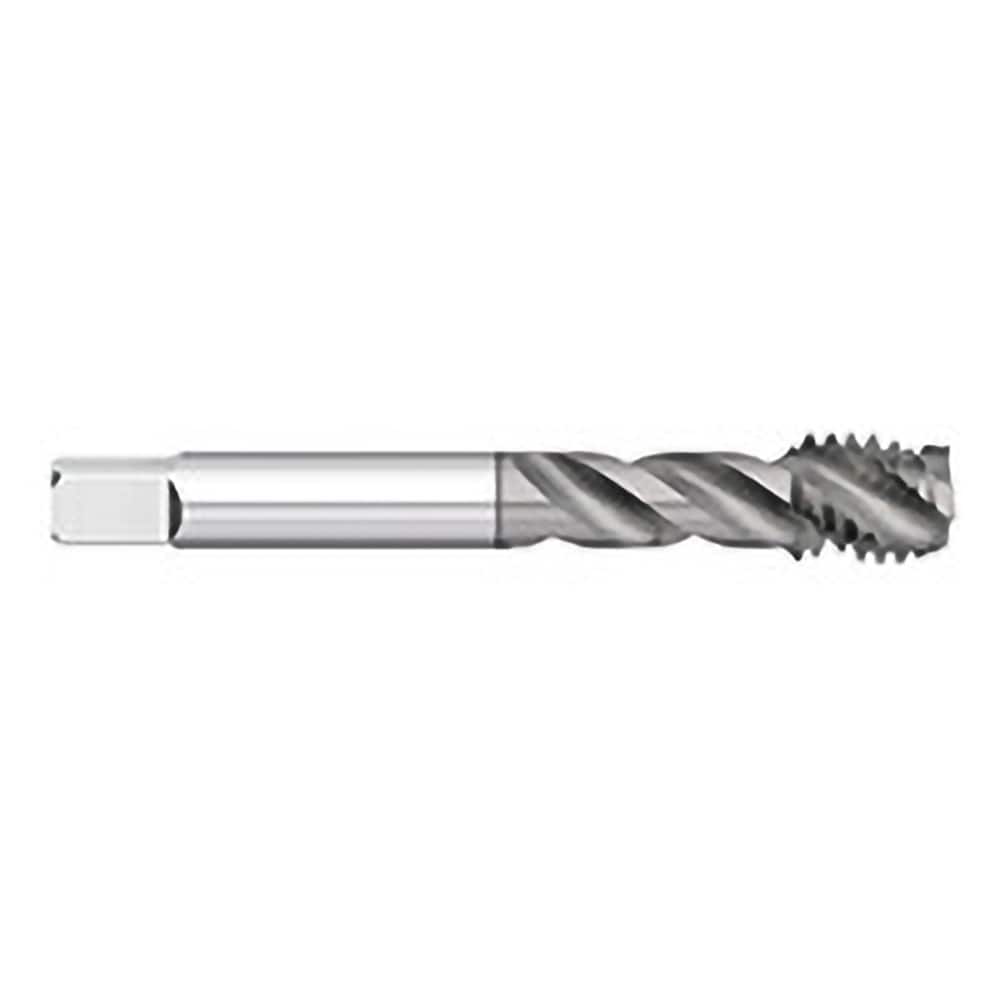

Spiral Flute Tap: 1/4-28, UNF, 3 Flute, Semi-Bottoming, 2B & 3B Class of Fit, Powdered Metal, TiCN Finish 0.46″ Thread Length, 2.5″ OAL, Right Hand Flute, Right Hand Thread, H4, Series 781
Item #: 19615731
Brand: Titan USA
Model #: TT97643
Product Specifications
| Material | Powdered Metal |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | 1/4-28 |
| Thread Standard | UNF |
| Thread Limit | H4 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4600 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Length (Inch) | 5/16 |
| Square Size (Decimal Inch) | 0.1910 |
| Series | 781 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 2B; 3B |
