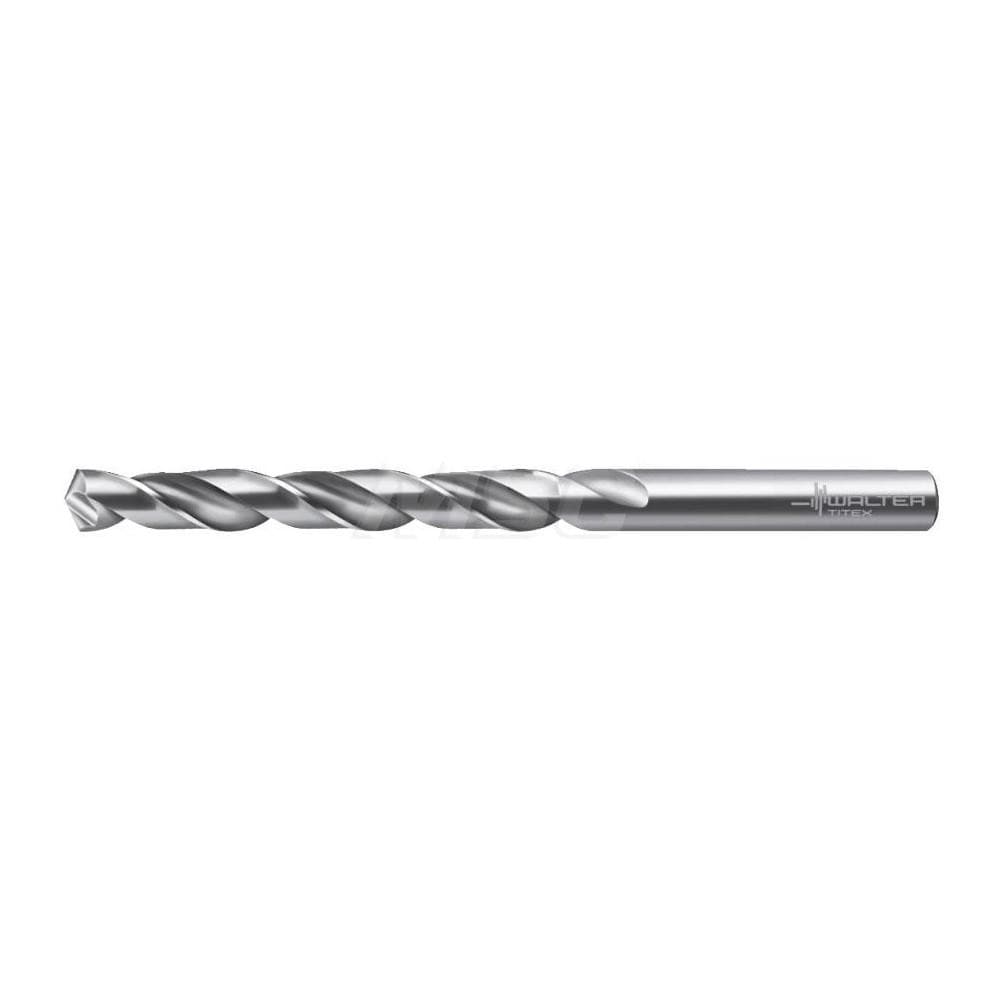

Jobber Drill: 1.35 mm Dia, 130 deg Point, Cobalt
Item #: 97098446
Brand: Walter-Titex
Model #: 5060300
Product Specifications
| Drill Bit Size (mm) | 1.35 |
| Drill Bit Size (Decimal Inch) | 0.0532 |
| Drill Bit Material | Vanadium High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Facet |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S; M |
| Shank Diameter (Decimal Inch) | 0.0532 |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Spiral Type | Regular |
| Flute Length (mm) | 18.00 |
| Flute Length (Decimal Inch) | 0.7087 |
| Series | A1244 |
| Tool Application | Blind Hole; Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 1.35 |
| Maximum Drilling Depth (Decimal Inch) | 0.5906 |
| Maximum Drilling Depth (mm) | 15.00 |
| Shank Length (mm) | 22 |
| Shank Length (Decimal Inch) | 0.8661 |
| Drill Point Length (mm) | 0.31 |
| Drill Point Length (Decimal Inch) | 0.0124 |
| Drill Bit Diameter Tolerance | h8 |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | France |
