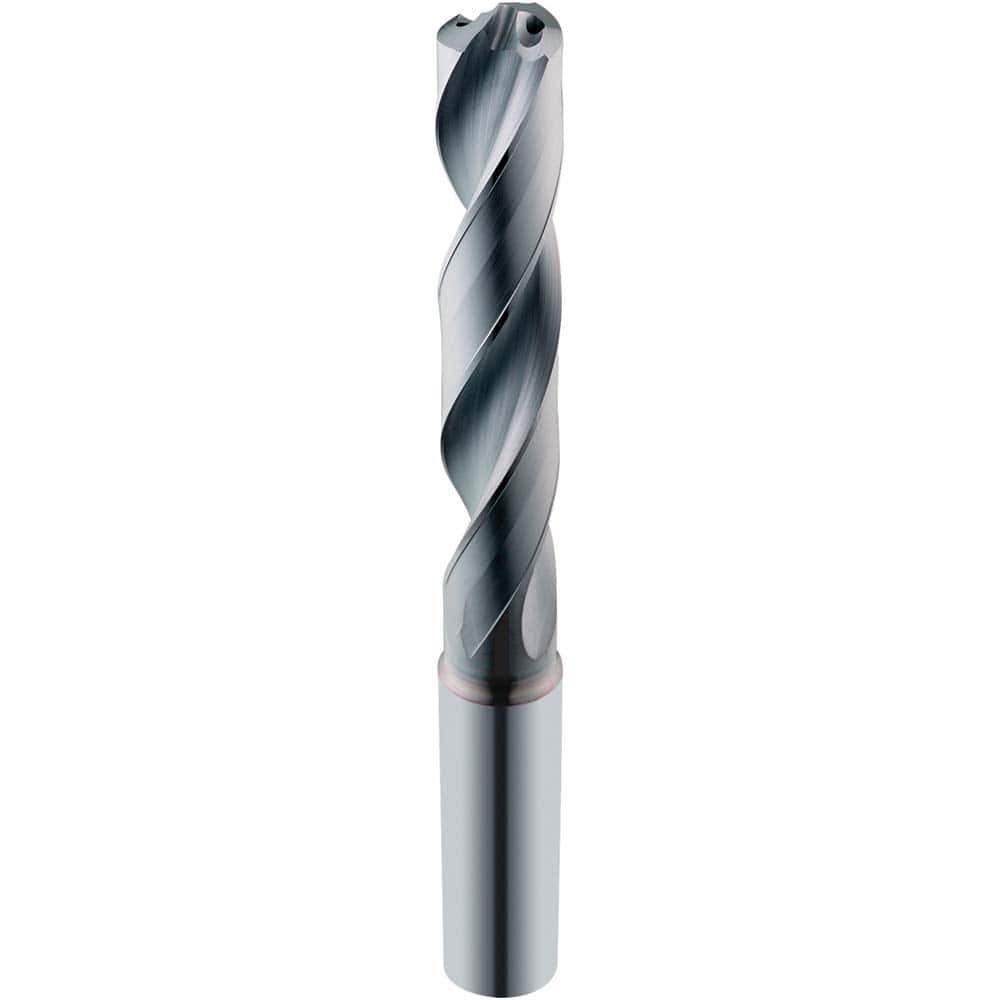

Screw Machine Length Drill Bit: 0.4016″ Dia, 135 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 142P
Item #: 19241900
Brand: SGS
Model #: 66472
Product Specifications
| Drill Bit Size (mm) | 10.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3100 |
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | 142P |
| Web Thinning | Web-Thinned |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 2.1654 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.11 |
| Drill Point Length (Decimal Inch) | 0.0832 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.00024 to +0.00083 in; +0.006 to +0.021 mm |
| Flute Length (Decimal Inch) | 2.1654 |
| Flute Length (Inch) | 1-39/64 |
| Flute Length (mm) | 55.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Specification Number | DIN 6537 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
| Product Service Code | 3455 |
 | |
| MSC Part # | 19241900 |
| Mfr Part # | 66472 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
