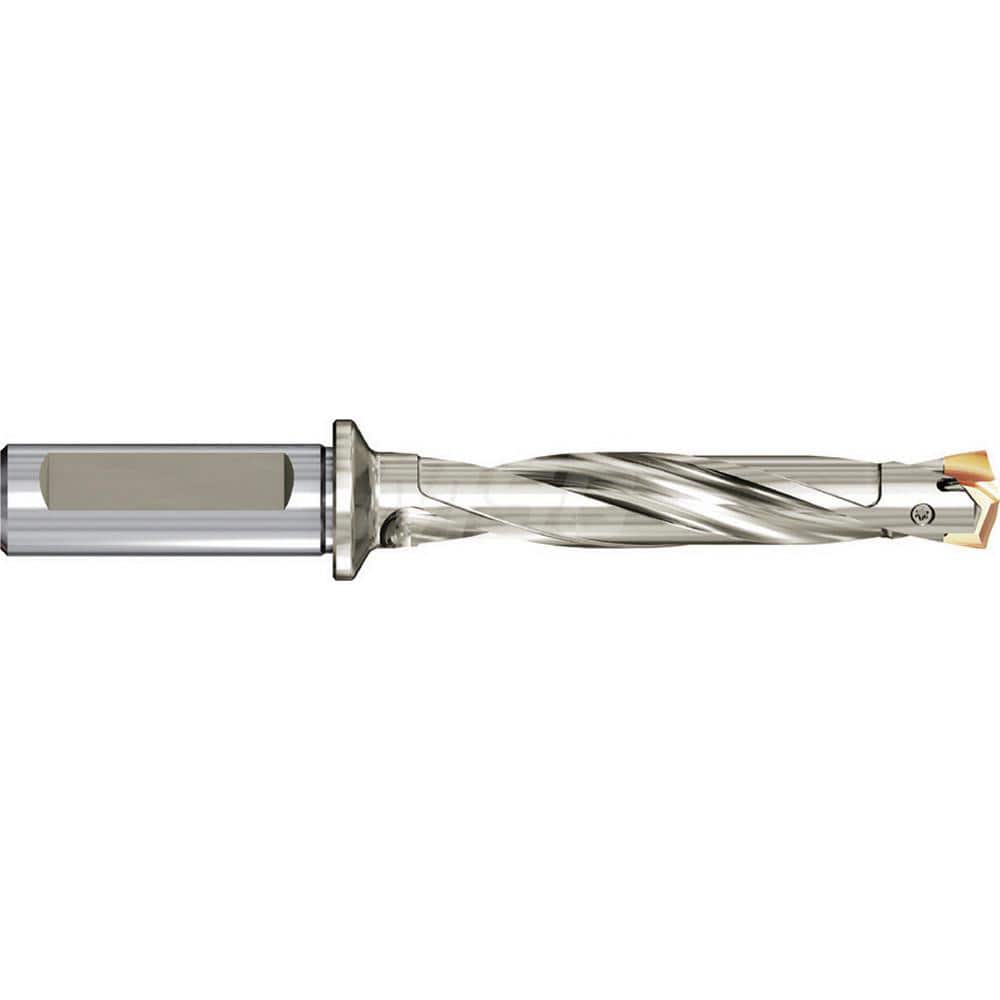

Replaceable Tip Drill: 0.9842 to 1.0197'' Drill Dia, 8.1875″ Max Depth Seat Size 0.3000, Through Coolant
Item #: 19222496
Brand: YG-1
Model #: ZD25008125
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9842 |
| Maximum Drill Diameter (Decimal Inch) | 1.0197 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 8.1875 |
| Insert Style | S24 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Seat Size | 0.3000 |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Series | ZD24008 |
| Toolholder Style | i-one |
| Coolant Through | Yes |
