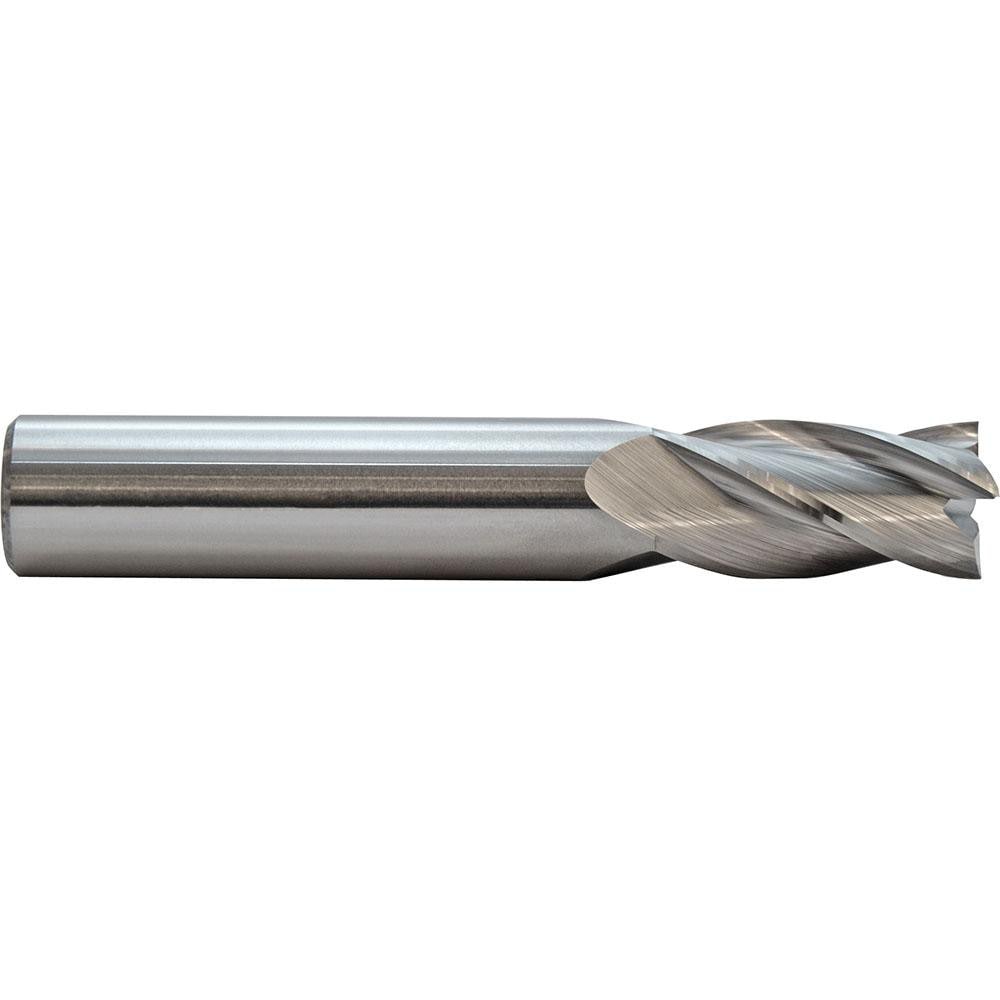

Corner Radius End Mill: 8 mm Dia, 20.00 mm LOC, 1.00 mm Radius, 4 Flute, Solid Carbide
Item #: 84099464
Brand: M.A. Ford
Model #: 11131503
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 20.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0394 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.00 |
| Overall Length (mm) | 64.00 |
| Coolant Through | No |
| Pitch | Normal |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7874 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 8.00 |
| Reach Length (mm) | 20.00 |
| Mill Diameter Tolerance | +0.000/-0.058 mm |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Material Grade | Micrograin |
| Series | 111 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | Uncoated |
| For Use With. | Toolholders |
| Helix Style | Medium |
| Manufacturers Catalog Number | 11131503 |
| Country of Origin | UNITED STATES |
