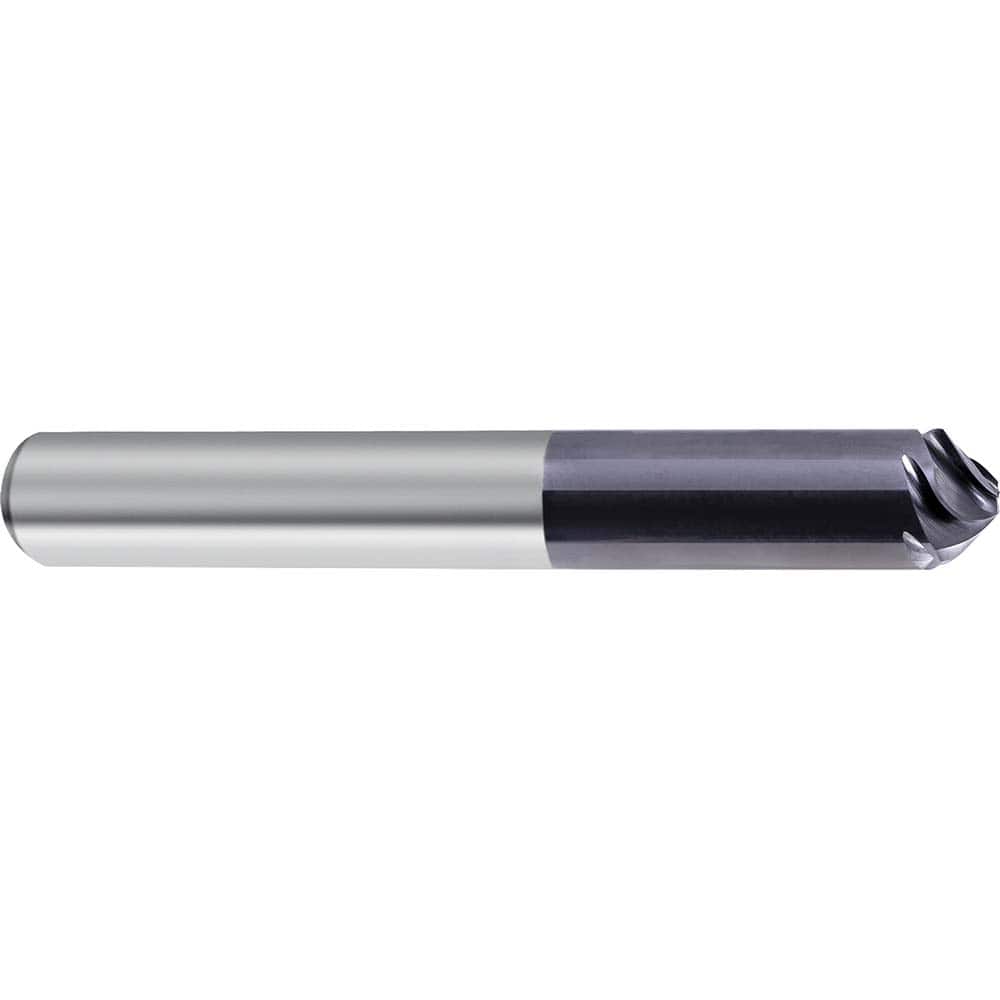

Chamfer Mill: 0.25″ Dia, 5 Flutes, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, Nano-A Coated
Item #: 19213479
Brand: Guhring
Model #: 9068760063500
Product Specifications
| Cutter Head Diameter (mm) | 6.35 |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| Included Side Angle | 90.00 |
| Length of Cut (mm) | 2.38 |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Length (mm) | 2.40 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Cutting Direction | Right Hand |
| Series | 6876 |
| Insertable Cutter Head | No |
| Cutting Edge Style | Helical |
| Body Diameter (Inch) | 1/4 |
| Included Angle A | 90.00 |
| Chamfer Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Material Application | Tin; Aluminum Alloy; Stainless; Steel |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0938 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Coating/Finish | nano-A |
