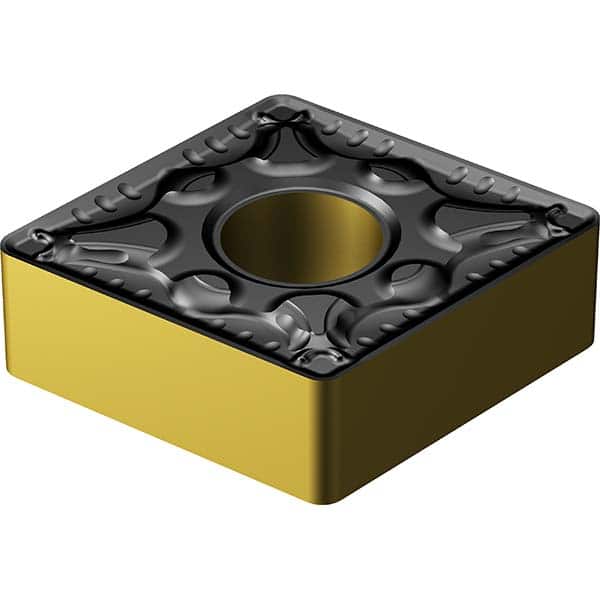

CNMG644-PM 4415 Carbide Turning Insert TiCN+Al2O3+TiN Finish, Neutral, 19.05mm Inscribed Circle, 1.59mm Corner Radius, 6.35mm Thick, 80° Diamond, Series T-Max P
Item #: 19106616
Brand: Sandvik Coromant
Model #: 7859230
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 1906 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CNMG644PM4415 |
| Iso Code | CNMG 19 06 16-PM 4415 |
| Manufacturers Catalog Number | CNMG 644-PM 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PM |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 19106616 |
| Mfr Part # | 7859230 |
| Country of OriginCountry of Origin is subject to change | Sweden |
