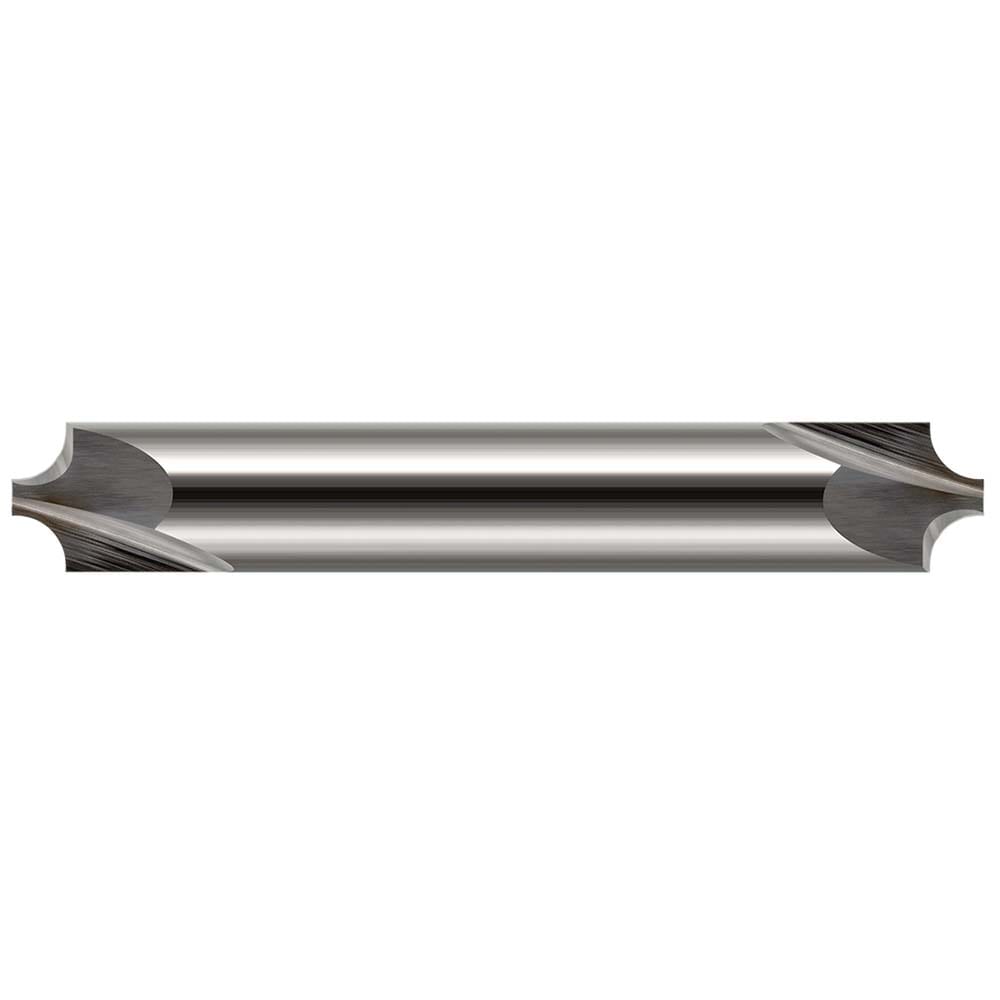

Corner Rounding End Mill: 3/32" Radius, 5/16" Dia, 2 Flutes, Solid Carbide
Item #: 05906771
Brand: Harvey Tool
Model #: 793493
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Radius (Decimal Inch) | 0.0930 |
| Radius (Inch) | 3/32 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Tip Diameter (Decimal Inch) | 0.1100 |
| Tip Diameter (mm) | 2.800 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Series | Corner Rounding End Mills - 2 & 4 Flute - Unflared |
| Coolant Through | No |
| Single Or Double End | Double |
| Coating/Finish | Uncoated |
| UNSPSC Code | 27112803 |
