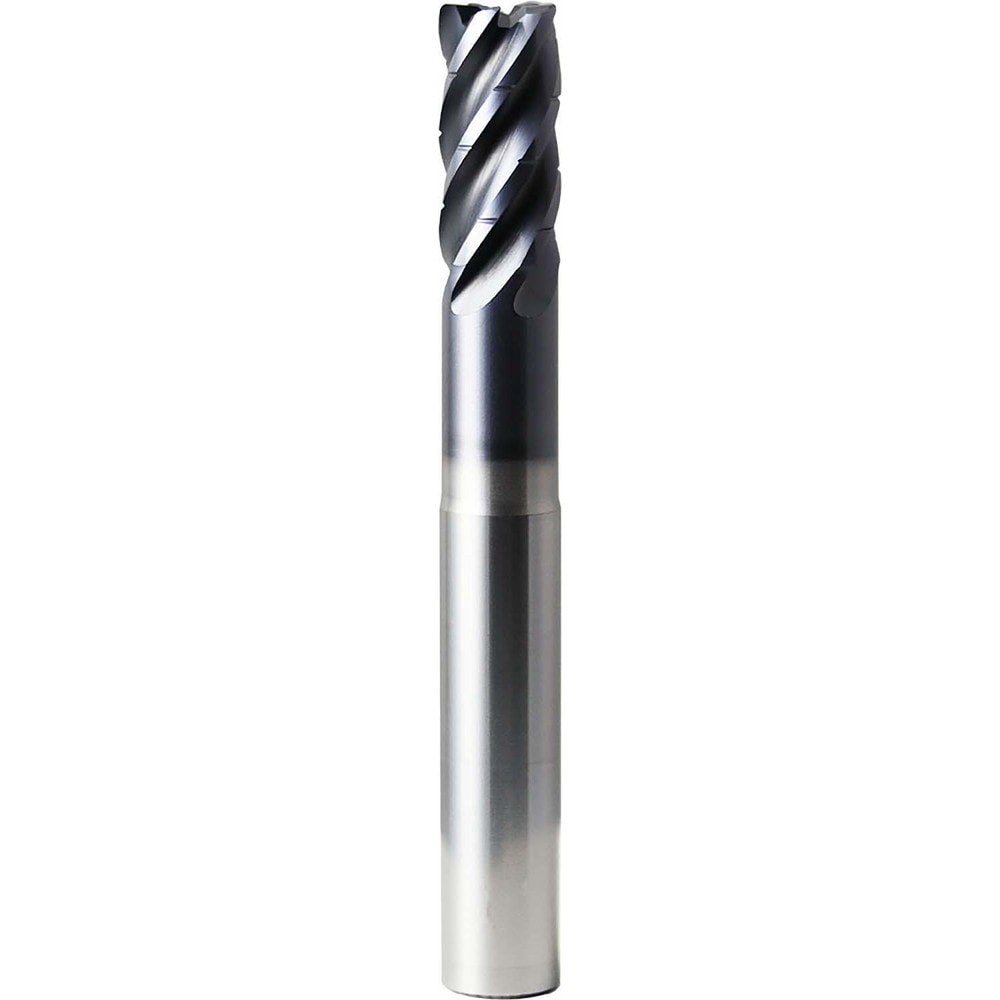

Square End Mill: 5/8" Dia, 1-1/4" LOC, 5 Flute, Solid Carbide
Item #: 63284269
Brand: SGS
Model #: 37895
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 37 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | Ti-NAMITE-A |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | Yes |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Long |
| Reach Length (Inch) | 2-1/2 |
| Series | Z5S |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 37 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | Ti-NAMITE-A |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | Yes |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Long |
| Reach Length (Inch) | 2-1/2 |
| Series | Z5S |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 63284269 |
| Mfr Part # | 37895 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
