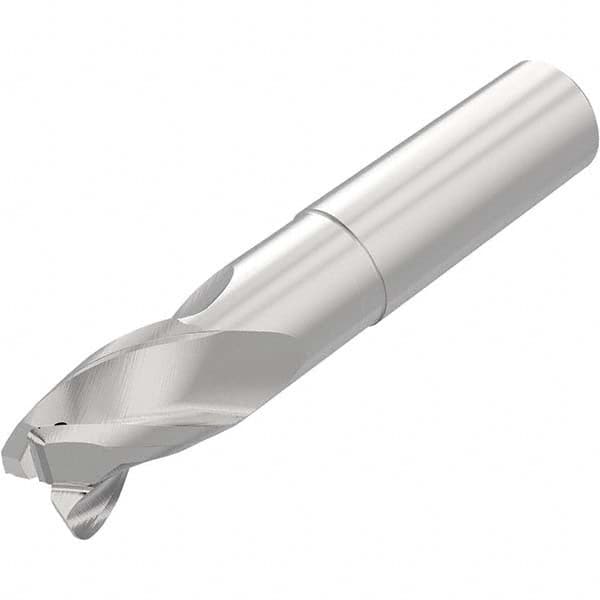

Corner Radius End Mill: 1″ Dia, 1-1/4″ LOC, 0.12″ Radius, 3 Flutes, Solid Carbide 4″ OAL, 1″ Shank Dia, 35 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series AN230R
Item #: 18996686
Brand: Niagara Cutter
Model #: 03302671
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 1-1/4 |
| Corner Radius (Decimal Inch) | 0.1200 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Neck Diameter (Decimal Inch) | 0.9600 |
| Reach Length (Inch) | 2-1/8 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Mill Diameter Tolerance | +0.002000 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | AN230R |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
