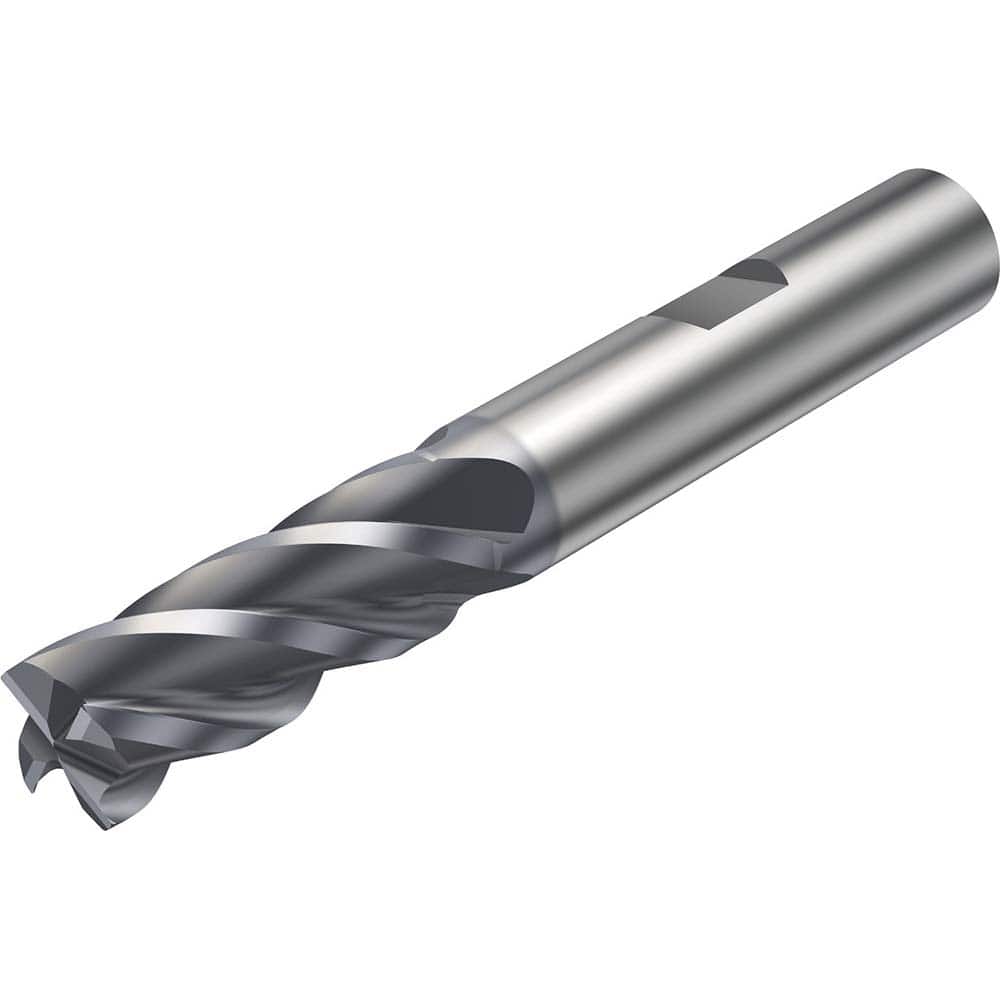

Sandvik Coromant - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 25.00 ; Mill Diameter (Decimal Inch): 0.9840 ; End Type: Corner Chamfer ; Chamfer Width (mm): 0.250 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 18894444
Brand: Sandvik Coromant
Model #: 7716341
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 25.00 ; Mill Diameter (Decimal Inch): 0.9840 ; End Type: Corner Chamfer ; Chamfer Width (mm): 0.250 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9840 |
| End Type | Corner Chamfer |
| Chamfer Width (mm) | 0.250 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Length of Cut (mm) | 52.0000 |
| Shank Diameter (mm) | 25.0000 |
| Overall Length (mm) | 129.5000 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Index | No |
| Variable Helix | No |
| Chamfer Angle | 45.000 |
| Single or Double End | Single |
| Centercutting | Yes |
| Shank Type | Weldon |
| Series/List | CoroMill Plura |
